National Guard Products 9700E 30"

copy to clipboard

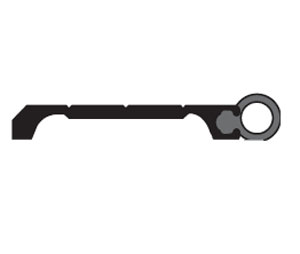

National Guard Products 9700E 30" Perimeter Seal - Mill Finish Aluminum with Silicone Plus Insert

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
National Guard Products 9700E 30" Perimeter Seal - Mill Finish Aluminum with Silicone Plus Insert
More from National Guard Products
Price: $49.14 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
National Guard Products 9700E 30" Perimeter Seal - Mill Finish Aluminum with Silicone Plus Insert
  • Perimeter Seal Compatible with Parallel Arm Closer with Silicone Plus Insert
  • Length: 30"
  • Holder:
    • Width: 1 1/2"
    • Heigth: 1/4"
    • Material: Aluminum
    • Finish: Mill
  • Insert:
    • Projection: 5/16"
    • Color: Black
    • Material: Silicone Plus
  • Smoke and Draft Control-UL Classified Category H
  • UL 10B Classified on wood doors up to 90 min.
  • UL 10B Classified on metal doors up to 3 hr.
  • UL 10C Classified on wood doors up to 90 min.
  • UL 10C Classified on metal doors up to 3 hr.
  • Air Infiltration Tested
  • ANSI/BHMA Certified
  • No braek in seal
  • Head not drilled
  • Jamb sections furnished with slotted holes for adjustment
  • Self driling #8 (Tek type) screws furnished
  • Closer and/or overhead holder attach to frame through weatherseal section. Install Gasket First
  • Allows mounting of rim exit device strikes without notching gasketing
  • Screw holes slotted for adjustment.

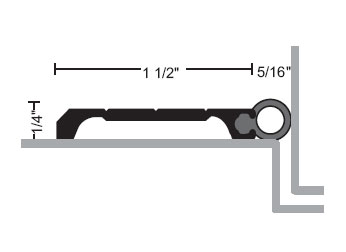

Dimensions
