National Guard Products 9500 x 2525B 84

copy to clipboard

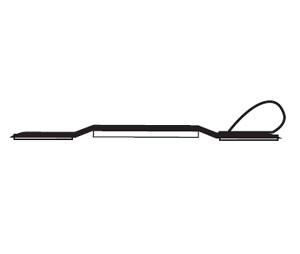

National Guard Products 9500 x 2525B 84 NGP-Edge® Intumescent Fire and Smoke Perimeter Seal Set - 1-9/16"W x 84" Length - Self Adhesive

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
National Guard Products 9500 x 2525B 84 NGP-Edge® Intumescent Fire and Smoke Perimeter Seal Set - 1-9/16"W x 84" Length - Self Adhesive
More from National Guard Products
Price: $72.40 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
National Guard Products 9500 x 2525B 84 NGP-Edge® Intumescent Fire and Smoke Perimeter Seal Set - 1-9/16"W x 84" Length - Self Adhesive
  • NGP-Edge® Intumescent Fire and Smoke Perimeter Seal Set
  • Set Includes: 2 x 84" pieces - 9500 & 2525B
  • NGP 9500 properties: Size: 1-9/16"W x 5/64H, Material: Gray Intumescent Fire Seal
  • NGP 2525B properties: Size: 1/2" W x 3/8" H, Material: Brown Silicone Somke Seal
  • 1/8" clearance required between door and frame
  • Edge Sealing System - Category “G” for 20, 45, 60, 90 minute rated category B wood doors perimeter application up to: 4'0 x 9'0 single swing and 8'0 x 9'0 pairs
  • Smoke and Draft Control - Category “H”
  • UL 10B Classified on wood doors up to 90 min.
  • UL 10B Classified on metal doors up to 3 hr.
  • UL 10C Classified on wood doors up to 90 min.
  • UL 10C Classified on metal doors up to 3 hr.
  • Acoustical Rated
  • Air Infiltration Tested
  • BHMA certified
  • Available in 36", 48", 84", 96" and 108" lengths
  • Adhesive specifications: Modified acrylic pressure sensitive adhesive protected by release liner. Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations. Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals. End use temperature range, long term exposure -30°F up to 250°F. Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less.

uired

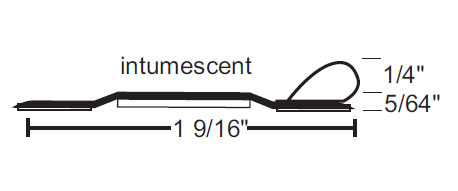

Dimensions
Click to enlarge image
