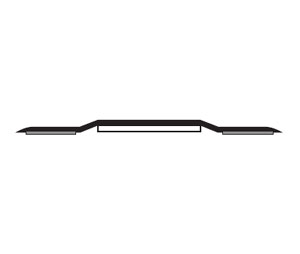

National Guard Products 9500 84 NGP-Edge® Intumescent Fire Seal - 1-9/16"W x 5/64H x 84" Length - Gray Color - Self Adhesive

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
National Guard Products 9500 84 NGP-Edge® Intumescent Fire Seal - 1-9/16"W x 5/64H x 84" Length - Gray Color - Self Adhesive
More from National Guard Products
Price: $51.99 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
National Guard Products 9500 84 NGP-Edge® Intumescent Fire Seal - 1-9/16"W x 5/64H x 84" Length - Gray Color - Self Adhesive
  • NGP-Edge® Intumescent Fire Seal
  • Length: 84"
  • Size: 1-9/16"W x 5/64"H
  • Material: Intumescent
  • Color: Gray
  • 1/8" clearance required between door and frame
  • Intumescent with PVC cover
  • Edge Sealing System - Category “G” for 20, 45, 60, 90 minute rated category B wood doors up to: 4'0 x 9'0 (perimeter application) single swing and 8'0 x 9'0 (perimeter/meeting edge) pairs
  • Smoke and Draft Control - Category “H”
  • UL 10B Classified on wood doors up to 90 min.
  • UL 10B Classified on metal doors up to 3 hr.
  • UL 10C Classified on wood doors up to 90 min.
  • UL 10C Classified on metal doors up to 3 hr.
  • BHMA certified
  • Anti-Microbial Rated
  • Available in Gray, Brown colors, and sold in 36", 48", 84", 96" and 108" lengths
  • Adhesive specifications: Modified acrylic pressure sensitive adhesive protected by release liner. Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations. Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals. End use temperature range, long term exposure -30°F up to 250°F. Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less.

uired

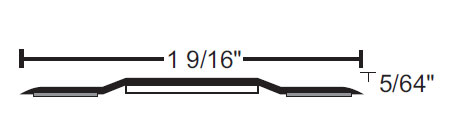

Dimensions
