Home > Weatherstripping > Perimeter Seal > Mill Finish > Vinyl > Standard > Screw Mount > Single Lengths > National Guard Products 703EV 36"

National Guard Products 703EV 36"

Name: National Guard Products 703EV 36" Perimeter Seal - Mill Finish Aluminum with Vinyl Insert
Brand: National Guard Products
SKU: National Guard Products 703EV 36"
Price: 29.25 USD

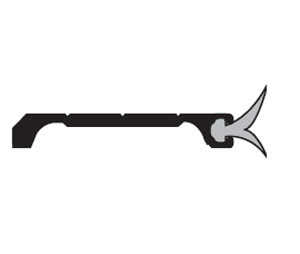

National Guard Products 703EV 36" Perimeter Seal - Mill Finish Aluminum with Vinyl Insert

× This image is for a similar product but it will differ in size, color and/or other attributes.

National Guard Products 703EV 36" Perimeter Seal - Mill Finish Aluminum with Vinyl Insert

Price: $29.25 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

National Guard Products 703EV 36" Perimeter Seal - Mill Finish Aluminum with Vinyl Insert

Perimeter Seal Compatible with Parallel Arm Closer with Vinyl Insert
Length: 36"
Holder:

Width: 1 1/2"
Heigth: 1/4"
Material: Aluminum
Finish: Mill

Insert:

Projection: 3/16"
Heigth: 1/2"
Color: Gray
Material: Vinyl

UL 10B Classified on wood doors up to 90 min.
UL 10B Classified on metal doors up to 3 hr.
UL 10C Classified on wood doors up to 90 min.
UL 10C Classified on metal doors up to 3 hr.
Air Infiltration Tested
No braek in seal
Head not drilled
Jamb sections furnished with slotted holes for adjustment
Self driling #8 (Tek type) screws furnished
Closer and/or overhead holder attach to frame through weatherseal section. Install Gasket First
Allows mounting of rim exit device strikes without notching gasketing
Screw holes slotted for adjustment.

Product Brochure

Installation

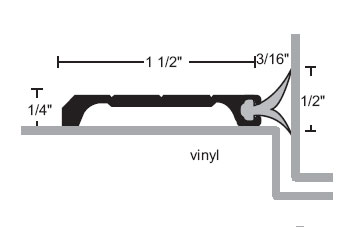

Dimensions

Click to enlarge image
