National Guard Products 4448WH 60"

Name: National Guard Products 4448WH 60" Mill Finish Aluminum Single Actuated Automatic Door Bottom with Nylon Brush insert - Mortise Mount
Brand: National Guard Products
SKU: National Guard Products 4448WH 60"
Price: 210.72 USD

National Guard Products 4448WH 60" Mill Finish Aluminum Single Actuated Automatic Door Bottom with Nylon Brush insert - Mortise Mount

× This image is for a similar product but it will differ in size, color and/or other attributes.

National Guard Products 4448WH 60" Mill Finish Aluminum Single Actuated Automatic Door Bottom with Nylon Brush insert - Mortise Mount

Price: $210.72 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

National Guard Products 4448WH 60" Mill Finish Aluminum Single Actuated Automatic Door Bottom with Nylon Brush insert - Mortise Mount

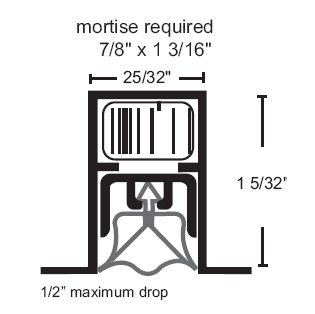

Single Actuated Automatic Door Bottom with Nylon Brush Insert
Length: 60"
Width: 25/32"
Heigth: 1 5/32"
Max Drop: 1/2"
Mortise required: 7/8" x 1 3/16"
Material: Aluminum
Finish: Mill Finish
Insert : Black Nylon Brush
Mortise Mount
Mounting: #4 x 5/8" SMS furnished
Furnished 1/4" shoter than ordered to fit net door width (i.e. 36" is furnished 35 3/4")
Matches design of dual actuated door bottoms. For use on pairs of doors or field size for single doors
Low compression & operating force!
Concealed fasteners
Smoke and Draft Control-UL Classified Category H
UL 10B Classified on wood doors up to 90 min.
UL 10B Classified on metal doors up to 3 hr.
UL 10C Classified on wood doors up to 90 min.
UL 10C Classified on metal doors up to 3 hr.
Air Infiltration Tested
ANSI/BHMA Certified
