National Guard Products 4447S 36"

copy to clipboard

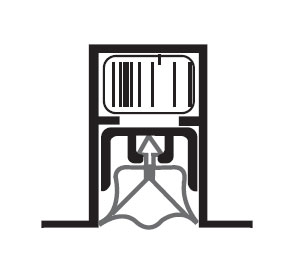

National Guard Products 4447S 36" Mill Finish Aluminum Dual Actuated Automatic Door Bottom with Silicone insert - Mortise Mount

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
National Guard Products 4447S 36" Mill Finish Aluminum Dual Actuated Automatic Door Bottom with Silicone insert - Mortise Mount
More from National Guard Products
Price: $168.54 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
National Guard Products 4447S 36" Mill Finish Aluminum Dual Actuated Automatic Door Bottom with Silicone insert - Mortise Mount
  • Dual Actuated Automatic Door Bottom with Silicone Insert
  • Hinge & Latch Edge
  • Length: 36"
  • Width: 25/32"
  • Heigth: 1 5/32"
  • Max Drop: 1/2"
  • Mortise required: 7/8" x 1 3/16"
  • Material: Aluminum
  • Finish: Mill Finish
  • Insert : Gray Silicone
  • Mortise Mount
  • Mounting: #4 x 5/8" SMS furnished
  • Furnished 1/4" shoter than ordered to fit net door width (i.e. 36" is furnished 35 3/4")
  • Will not function on pairs of doors:
    • For pairs use matching single actuated door bottoms shown below
    • Low compression & operating force
    • Concealed fasteners
  • Smoke and Draft Control-UL Classified Category H
  • UL 10B Classified on wood doors up to 90 min.
  • UL 10B Classified on metal doors up to 3 hr.
  • UL 10C Classified on wood doors up to 90 min.
  • UL 10C Classified on metal doors up to 3 hr.
  • Air Infiltration Tested
  • ANSI/BHMA Certified

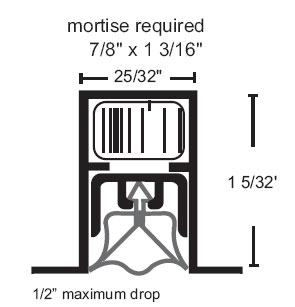

Dimensions
