Home > Weatherstripping > Perimeter Seal > Clear Aluminum > Neoprene > Solid > Snap-On Cover > Screw Mount > Single Lengths > National Guard Products 172NA 24"

National Guard Products 172NA 24"

copy to clipboard

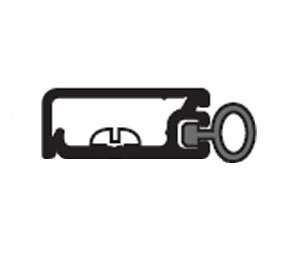

National Guard Products 172NA 24" Concealed Fastener Seal - Clear Anodized Aluminum with Neoprene Insert

enlarge

enlarge

× This image is for a similar product but it will differ in size, color and/or other attributes.

National Guard Products 172NA 24" Concealed Fastener Seal - Clear Anodized Aluminum with Neoprene Insert

Price: $14.82 USD

Ships From

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

National Guard Products 172NA 24" Concealed Fastener Seal - Clear Anodized Aluminum with Neoprene Insert

Concealed Fastener Seal with Neoprene Insert
Length: 24"
Holder:

Width: 11/16"
Heigth: 5/16"
Material: Aluminum
Finish: Clear Anodized

Insert:

Projection: 1/8"
Heigth: 1/2"
Color: Black
Material: Neoprene

Mounting: #6 x 3/4" Stainless Steel Sheet Metal Screws furnished.
Snap-on cover conceals screw heads for cleaner appearance
Smoke and Draft Control-UL Classified Category H
UL 10B Classified on wood doors up to 90 min.
UL 10B Classified on metal doors up to 3 hr.
UL 10C Classified on wood doors up to 90 min.
UL 10C Classified on metal doors up to 3 hr.
Air Infiltration Tested
ANSI/BHMA Certified
Screw holes slotted for adjustment.

Product Brochure

Product Brochure

Installation Instructions

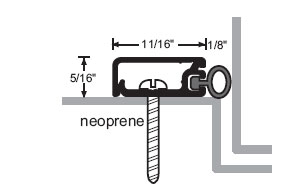

Dimensions

Click to enlarge image

Questions and Answers

Q: I am looking for this product in a 96” length

A: The National Guard Products 172NA 96" Concealed Fastener Seal - Clear Anodized Aluminum with Neoprene Insert can be seen here:
