National Guard Products 137SASET 78

copy to clipboard

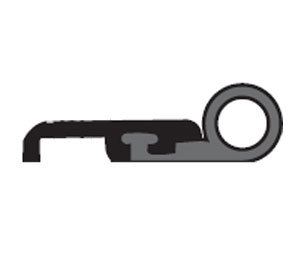

National Guard Products 137SASET 78 Clear Anodized Aluminum 78" Length Smoke-Rated Astragal Seal Set with Silicone Insert

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
National Guard Products 137SASET 78 Clear Anodized Aluminum 78" Length Smoke-Rated Astragal Seal Set with Silicone Insert
More from National Guard Products
Price: $158.45 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
National Guard Products 137SASET 78 Clear Anodized Aluminum 78" Length Smoke-Rated Astragal Seal Set with Silicone Insert
  • Smoke-Rated Astragal Seal Set
  • Set Includes: 2 x 78" pieces
  • Holder Width: 7/8"
  • Holder Material: Clear Anodized Aluminum
  • Insert Material: Gray Silicone
  • Insert Height: 5/16"
  • Fire-rated Astragal Seals cannot replace any astragal required on the door by the door manufacturer to maintain its fire label. IBC, NFPA 80, NFPA 105, and NFPA 252 require the gap at the meeteng edge between fire labeled doors must not exceed 1/8".
  • Mounting: #6 x 3/4" Stainless Steel Sheet Metal Screws furnished
  • Screw holes are slotted for adjustment
  • Smoke and Draft Control-UL Classified Category H
  • UL 10B Classified on wood doors up to 90 min.
  • UL 10B Classified on metal doors up to 3 hr.
  • UL 10C Classified on wood doors up to 90 min.
  • UL 10C Classified on metal doors up to 3 hr.
  • Air Infiltration Tested
  • BHMA certified

uired

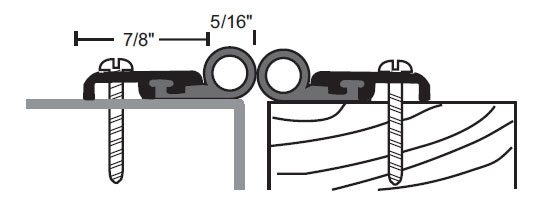

Dimensions
Click to enlarge image
