Product Description:

NVT NVT-NVEC1701UK2H Dual 90W Ethernet over 2-Wire Transmission System

Model: NVEC1701UK2H

Features:

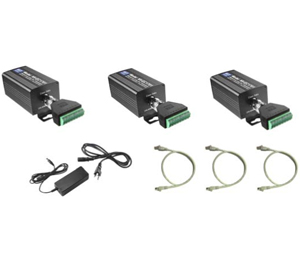

Transceiver Kit:
- 3x NV-EC1701U Transceiver
- 1x NV-PS56-90W Power Supply with IEC Line Cord
- 3x RJ45 Patch-Cord
100 BaseT Transmission; Network speeds up to 93 Mbps; Up to 1000ft (305m)
One NV-EC1701U transceiver at the network-end can support multiple remote transceivers/IP cameras
56V DC is distributed over the coax to all connected equipment
Powers PoE, PoE+, or High Power PoE cameras (or other PoE devices), up to 50 watts
Easy Configuration, no PC Required
Transparently supports all networking protocols (UDP, TCP/IP, HTTP, Multicast, etc.)
128-bit AES Encrypted Transmission
Built-In Transient Protection; Industrial Temperature Range

Specification:

RJ45 Ethernet Interface
- Connectivity: RJ45, Auto-Crossover
- Wire type: Cat5 or better
- Distance: up to 328ft (100m)
- Speed: 10/100 Base T, Auto-Negotiation, Auto MDI/MDIX Cross-Over
- Latency: 3ms
2-Wire Building Wiring Interface
- Screw terminals using the NV-BNCA adaptor
- Impedance: 25O to 100O
- Transmission Technology: IEEE 1901, 128-bit AES Encryption
Power Consumption
- Consumption per Transceiver: =3.0 W @ 10V to 56V DC
- Total System Consumption: = Total Consumption of Transceivers + Total Consumption of PDs (IP Cameras) + Total Power Dissipated in the Wire
Mechanical
- Operating and Storage Temperature: 40°F to 185°F (-40°C to +85°C)
- Trainsceiver Body Dimensions* (L x H x W): 5.10" x 1.30" x 1.50"
  - *Excluding Connectors
- Trainsceiver Weight: 0.32lb
