Features:

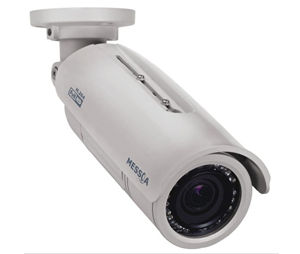

- Model: MES-NCR875PROHN5
- Product Type: Full HD 1080p IR Bullet Network Camera
- Image System:
- Image Sensor: 1/2.7" Image Sensor Optimized for Low-Light Performance
- Compression: Triple Streaming: H.264 / MPEG4 / Motion JPEG
- Resolution: 1080p, SXVGA, 720p, XGA, SVGA, D1, VGA, 2CIF, CIF
- Maximum Frame Rates; 2MP Full HD (1920x1080p) @ 30 fps (NTSC) and 25 fps (PAL)
- Day/Night: Mechanical IR Cut Filter (Auto.)
- Shutter Time: 1/10000s to 1/3.75s (60Hz); 1/10000s to 1/3.125s (50Hz)
- Minimum Illumination:
- IR LED OFF: 0.08 Lux @30IRE; 0.20 Lux @50IRE (Shutter speed: 1/15sec)
- IR LED ON: 0 lux
- Effective Pixels:
- NTSC: 720 X 480 @30fps
- PAL: 720 X 576 @25fps
- Bit Rate Control CBR/VBR
- Lens:
- Focal Length, F-Number: Varifocal Lens, f=3~9mm, F=1.2 (Megapixel Lens)
- View Angle: H: 93°(Wide)~31.7°(Tele)/V:68.4°(Wide)~23.8°(Tele)
- Iris Control: DC Iris
- IR LED:
- LED Quantity: 24 pcs (850nm)
- IR Distance: 25 meters (82ft)
- IR Turn On Status: Under 10 lux by Auto Control
- LED Life: More than 10,000 hours (50ºC)
- Audio:
- Communication: Two-Way Mono Audio, Full-Duplex
- Compression: G.711 PCM 8kHz
- Audio In/Out: External Microphone/Speaker
- Image Enhancement:
- Image Settings:
- AWB, AES, AGC
- Exposure Mode: Auto/Manual
- White Balance: Auto/Manual
- Backlight Compensation: 5x5 Zones Selectable Sharpness, Saturation, Brightness
- Contrast: 255-Level Sensitivity
- Digital WDR: Yes; 5-Level Sensitivity
- Privacy Zone: Yes; Customized Threshold Privacy Zone
- Image Orientation: Mirror, Flip
- Frequency Control: 50/60 Hz
- Date/Time Stamp: Yes
- Intelligent Video:
- Motion Detection: 5 x 5 Zones, 5-Level Sensitivity or Customized Threshold
- Face Detection: 3-Level Sensitivity
- Audio Detection: 5-Level Sensitivity or Customized Threshold
- Blur Detection: Customized Sensitivity in seconds
- Ethernet Detection: Network Loss Detection
- Smart Encoding: Configurable ROI for Better Picture Quality
- Others: Snapshot, Smart Focus, e-PTZ, Optimized I-Frame Setting
- Event:
- Event Trigger: Motion Detection, Face Detection, Audio Detection, Blur Detection, Ethernet Detection, External Alarm
- Event Management: File Upload via FTP, SMTP and SD Card Notification via Email, HTTP and TCP External Output Activation
- Local Storage:
- Memory Card: Micro SD/ Micro SDHC Card up to 32 GB
- SD Card Overwrite: Yes
- SD Card Store Category: Alarm / Motion / Schedule/ Un-Interrupt Recording
- Network:
- Ethernet: 10Base-T/100Base-TX
- Protocol: IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,RTSP, ICMP, UPnP
- PoE: IEEE 802.3af, Class 3
- Browser: IE Browser 6.0 or Above
- ONVIF: Yes
- Security: Two-Level Access with Password Protection
- I/O Connector:
- Power: 2-Pin Terminal Block
- Alarm In/Out: Terminal Block 2 In/1 Out
- Network: RJ-45
- Reset: Within 5 secs. for Rebooting System; More than 5 secs. for Loading Default
- Audio In / Out: 3.5mm Phone Jack 1 In / 1 Out
- Video Output: BNC x 1, 1.0Vp-p, 75?
- Power Supply:
- Power Requirement: DC 12V & AC 24V ± 10%/PoE (IEEE 802.3af)
- Power Consumption (Max.): 8W
- Mechanical:
- Dimensions (H x Φ): 300mm x 88mm x 86 mm (11.79inch x 3.47inch x 3.39inch)
- Weight: 995g (2.2 lb.)
- Protection Class: IP67
- Regulations: CE, FCC, RoHS
- Environmental:
- Operating Temperature:-10°C ~ 50°C (-14°F ~ 122 °F)
- Operating Humidity: 10~ 90% RH
- Storage Temperature: -20°C ~ 60°C (-4°F ~ 140 °F)
|
