Features:
- Model: MES-NCR875EHN5

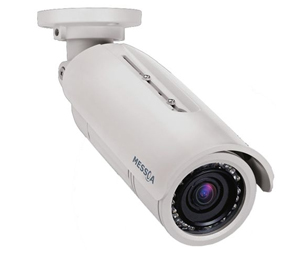

- Product Type: 1 Megapixel IR Bullet Network Camera
- Video:
- Sensor Type: 1/2.7" Image Sensor Optimized for Low-Light Performance
- Active Pixels: 1280x720P (HxV)
- Compression: H.264 / MPEG4 / Motion JPEG
- Streaming: Triple Simultaneous Streams
- Resolution: 720P, XGA, SVGA, D1, VGA, 2CIF, VGA, CIF
- Max. Frame Rate: 1MP 16:9 (1280x720) at 30 fps (NTSC) and 25 fps (PAL)
- Day/Night: Mechanical (ICR) D/N Control
- Day/Night Mode: Auto
- Shutter Time: 1/10000s to 1/3.75s Selectable (60Hz); 1/10000s to 1/3.125s Selectable (50Hz)
- Minimum Illum.:
- IR LED OFF: 0.08 Lux @30IRE, 0.20Lux @50IRE (Shutter Speed: 1/15sec)
- IR LED ON: 0 lux
- Video Output:
- NTSC: 720 X 480 @30fps
- PAL: 720 X 576 @25fps
- Bit Rate Control: Primary Stream Bit Rate Control: CBR/VBR
- Lens:
- Type, Focal Length, F-Number: Built-In Mechanical IR Cut Filter Varifocal Lens, f=3~9mm, F1.2 (Mega Pixel Lens)
- View Angle:
- H: 93°(Wide)~31.7°(Tele)
- V:68.4°(Wide)~23.8°(Tele)
- Iris Control: DC Iris
- IR LEDs:
- LED Quantity: 24 pcs (850nm)
- IR Distance: 25 meters (82 ft.)
- IR Turn On Status: Under 10 lux by Auto Control
- LED Life: More than 10,000 hours (50°C)
- Audio:
- Audio Comm.: Two-Way Mono Audio, Full-Duplex
- Compression: G.711, PCM, 8kHz
- Audio In/Out: External Microphone and Speaker
- Image Enhancement:
- Image Settings: AWB, AES, AGC, Exposure Mode, White Balance, Backlight Compensation, Brightness, Contrast, Sharpness, Staturation, Digital WDR, Privacy Zone
- Image Orientation: Mirror, Flip
- Frequency Control 50Hz, 60Hz
- Date & Time Stamp: Yes
- Intelligent Video:
- Motion Detection: 5 x 5 Zones, 5 Level Sensitivity or Customized Threshold
- Face Detection: 3 Level Sensitivity
- Audio Detection: 5 Level Sensitivity or Customized Threshold
- Blur Detection: Customized Sensitivity in Seconds
- Ethernet Detection: Network Loss Detection
- Smart Encoding: Configurable ROI for Better Picture Quality
- Others: Snapshot, Smart Focus, e-PTZ, Optimized I-Frame Setting
- Event:
- Event Trigger: Motion Detection, Face Detection, Audio Detection, Blur Detection, Ethernet Detection, External Alarm
- Event Management: File Upload via FTP, SMTP and SD Card; Notification via Email, HTTP and TCP; External Output Activation
- Local Storage:
- Memory Card Slot: MicroSD/SDHC card up to 32 GB
- Overwrite: Yes
- Recording Trigger: Alarm, Event, Schedule
- Network:
- Protocol: IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP, RTSP, ICMP, UPnP
- Ethernet: 10Base-T/100Base-TX Ethernet Connection for LAN / WAN, RJ-45
- PoE: IEEE 802.3af, Class 3
- ONVIF: Yes
- Browser: IE Browser 6.0 or Above
- Security: Two-Level Access with Password Protection
- I/O & Controls:
- Power: Screwless Terminal Block
- Alarm In/Out: Terminal Block 2 In / 1 Out
- Network: RJ-45
- Audio In/Out: 3.5mm Phone Jack 1 In / 1 Out
- RS-485: Reserved
- Analog Video: BNC X1, 1.0Vp-p, 75O;
- Reset: Within 5 secs to Reboot; More than 5 secs to Load Default
- Power:
- Power Requirement: DC 12V & AC 24V ± 10% / PoE(IEEE 802.3af)
- Power Consumption: 8W
- Mechanical:
- Dimensions(DxH): 300 x 88 x 86 mm (11.79" x 3.47" x 3.39")
- Weight: 995g (2.2 lb)
- Protection: IP67
- Environmental:
- Operating Temp. -10°C~50°C ( 14°F~122°F )
- Operating Humidity: 10~ 90% RH
- Storage Temp.: -20°C~60°C (-4°F~140°F)
|
