Messoa Technologies MES-NCR870HN5
Messoa Technologies MES-NCR870HN5

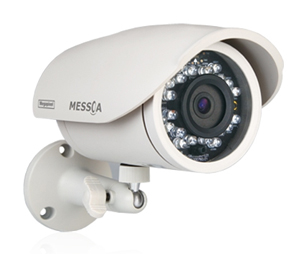

Messoa Technologies MES-NCR870HN5 Full HD 1080p, Fixed IR Bullet Network Camera
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
399.39 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Messoa Technologies MES-NCR870HN5 Full HD 1080p, Fixed IR Bullet Network Camera
Features:
Model: MES-NCR870HN5
Product Type: Full HD 1080p, Fixed IR Bullet Network Camera
Image System:
Image Sensor: 1/2.7" 2MP Image Sensor Optimized for Low-Light Performance
Image Compression Method: Triple Streaming : H.264 / MPEG4 / Motion JPEG
Max. Frame rate vs. Resolution:
H.264: 1920X1080(2M)@15fps
MPEG4: 1920X1080(2M)@15fps
MJPEG 1920X1080(2M)@15fps
Lens: Built-In Fixed Lens f=3.1 mm, F=2.0(Mega Pixels Lens)
Iris Control: DC Iris
View Angle:
H: 77° ±5%
V: 57° ±5%
Electric:
Shutter Time: Range From 1/10000s to 1/3.75s Selectable (60Hz); Range From 1/10000s to 1/3.125s Selectable (50Hz)
Day/Night Mode: Mechanical (ICR) Day/Night
Min. Illumination:
IR LED OFF: 1.5lux (F2.0, 50 IRE, 1/15s)
IR LED ON: 0lux
IR LED: IR LED 24pcs(850nm)
IR Distance: 25 meters (82 ft.)
IR Turn on Status: Under 10 lux by Auto Control
LED Life: More than 10,000 hours (50ºC)
Video Port: BNC X1, 1.0Vp-p, 75Ω
Video Output: NTSC, 720 X 480 @30fps
Image Enhance:
Exposure Mode: Auto/Manual
White Balance: Auto/Manual
Backlight Compensation: 5x5 zones Selectable, Sharpness, Saturation, Brightness
Contrast: 255 Level Sensitivity
Feature Brief:
Alarm Detection:
Motion Detection: 5 x 5 Motion Detection Zones & 5 Level Sensitivity or Customized Threshold
Alarm Event: File Upload via FTP, SMTP; Notification via Email
Image Orientation: Mirror, Flip
Other Snapshot
Environment:
Operating Temperature: -10ºC ~ 50ºC (14ºF ~ 122 ºF)
Min. Power-On Temperature: 0ºC
Operating Humidity: 10~ 90% RH
Storage Temperature: -20ºC ~ 60ºC (-4ºF ~ 140 ºF)
Regularity: CE, FCC, RoHS
Network:
Ethernet: 10Base-T/100Base-TX Ethernet Connection for LAN / WAN, RJ45
Internet Protocol: IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP, RTSP, ICMP, uPNP
Browser: IE Browser 6.0 or Above
I/O Connector:
Reset: Within 5 sec for Rebooting System; More than 5 sec for Loading Default
Mechanism:
Dimensions(ΦxLxH): Φ70mm x 162mm x 81.5mm (2.76” x 6.38” x 3.21”)
Weight: 550g (1.1lb)
Protection Class: IP67
Option: Without Heater
Datasheet
