- Features:
- Model: MES-NCR368

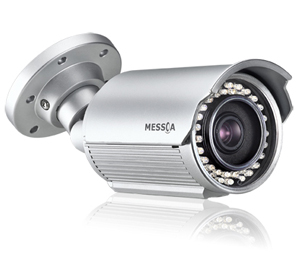

- Product Type: 5-Megapixel Outdoor IR Bullet Camera
- Video:
- Sensor Type: 1/3.2" Progressive Scan CMOS Sensor
- Active Pixels: 2592x1944 (HxV)
- Compression: H.264 / MJPEG
- Streaming: Triple Simultaneous Streams with Multiple Video Profile
- Resolution: 2592x1944, QXGA(2048x1536), 1080P, 1280x960, 720P, SVGA(800x 600), VGA(640x480), 640x360, QVGA(320x240), 320x180
- Max. Frame Rate: 5MP 4:3 (2592x1944) at 12 fps; 3MP 4:3 (2048x1536) at 15 fps; 2MP Full HD 16:9 (1920x1080) at 30/25 fps (NTSC/PAL)
- Day/Night: Mechanical (ICR) D/N Control
- Day/Night Mode: Auto/ BW/ Color
- Shutter Time: 1/10,000s to 1/7.5s Selectable (60Hz); 1/10,000s to 1/6.25s Selectable (50Hz)
- Minimum Illumination:
- IR LED OFF:
- Color: 0.15 lux at 50 IRE, 0,03 lux at 10 IRE, F1.2; (Shutter speed: 1/15 sec)
- IR LED ON: 0 lux
- Video Output: NTSC: 720x480 @30fps; PAL: 720x576 @25fps
- Bit Rate Control: CBR, VBR
- Lens:
- Lens Type: Built-in; Varifocal
- Focal Length: f=3~9mm, F1.2
- Focus / Zoom: Autofocus, motorized / Remote
- View Angle: H: 78°(Wide)~28°(Tele)
- Iris Control: DC Iris
- IR LEDs:
- LED Quantity: 48 pcs (850nm)
- IR Distance: 30 meters (87 ft.)
- IR Turn on Status: Under 5 lux by Auto Control
- LED Life: More than 10,000 hours (50°C)
- Audio:
- Audio Communication: Two-Way Audio
- Compression: G.711-Alaw / G.711-Ulaw, 8kHz
- Audio In/Out: External Microphone and Speaker
- Image Enhancement:
- Image Settings:
- AES, AWB, AGC
- Exposure Mode: AES / ALC / Flickerless / Manual
- White Balance: Auto / Manual
- Backlight Compensation Configurable Brightness, Contrast, Hue, Saturation and Sharpness, Gamma Correction
- WDR: Enhanced Digital WDR
- DNR: Configurable 3DNR Setting
- Privacy Zone: Yes, up to 8 Privacy Zones
- Image Orientation: Mirror, Flip
- Frequency Control: NTSC(60Hz)/ PAL(50Hz)
- Date & Time Stamp: Yes
- Intelligent Video & Event Management:
- Motion Detection: Yes, 3-Level Sensitivity
- Ethernet Detection: Network Loss Detection
- Others: Optimized I-Frame (GOP) Setting
- Events: Motion Detection, Ethernet Detection, External Alarm
- Event Actions: Event Snapshot to Remote FTP Storage/ Email Recipients, Edge Recording to SD Card, HTTP Event Query, HTTP Event Client Pulling
- Store Category: Event Snapshot, Edge Recording, Manual Snapshot, Manual Recording
- Local Storage:
- Memory Card Slot: MicroSDHC/SDXC Support
- Memory Card Overwrite: Yes
- Network:
- Protocol: ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP, UPnP, IEEE802.1X
- Ethernet: 10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
- ONVIF: Profile G, Profile S
- Browser: Internet Explorer, Chrome, Firefox, Safari
- I/O & Controls:
- Power: All-In-One Tail Cable Out 2-Pin Terminal Block/ Female RJ-45 10BASE-T/100BASE-TX PoE
- Power LED Indicator: System Power and Status Indicator
- Alarm In/Out: Terminal Block 1 In / 1 Relay Out (30V, 1A)
- Network: RJ-45 with LED Indicator
- Audio In/Out: Terminal Block 1 In / 1 Out
- Analog Video: 1 x Composite Video Out, Micro JST
- System Reboot: Reset x 1
- Factory Default: Default x 1, Pressing 5 sec for Loading Factory Default
- Power:
- Power Requirement: AC 24V ± 10% / PoE (IEEE 802.3af); Arctic Power-On Support by PoE at -40°C
- Power Consumption (Max.): 11.5W
- Mechanical:
- Dimensions(WxDxH): 115 x 264 x 110 mm (4.53" x 10.39" x 4.33")
- Weight: 1600g (3.44 lb)
- Protection: IP67 Certified, IP68 Compliant, IK10 Compliant
- Environmental:
- Operating Temperature: (On-Board Heating Device) -40ºC ~ 50ºC (-40ºF ~ 122 ºF)
- Operating Humidity: 90% RH, Non-Condensing
- Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
|
