Messoa Technologies MES-NCC800HN1

Name: Messoa Technologies MES-NCC800HN1 1080p Cube Network Camera
Brand: Messoa Technologies
SKU: Messoa Technologies MES-NCC800HN1
Price: 328.25 USD

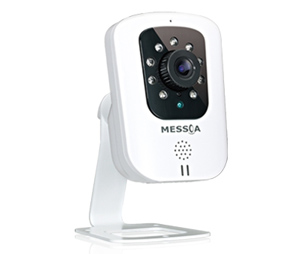

Messoa Technologies MES-NCC800HN1 1080p Cube Network Camera

× This image is for a similar product but it will differ in size, color and/or other attributes.

Messoa Technologies MES-NCC800HN1 1080p Cube Network Camera

Price: $328.25 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Messoa Technologies MES-NCC800HN1 1080p Cube Network Camera

Features:

Model: MES-NCC800HN1
Product Type: 1080p Cube Network Camera
Image System:

Sensor Type: 1/2.7" 2MP HD Image Sensor Optimized for Low-Light Performance
Image Compression: Triple Streaming : H.264 / MPEG4 / Motion JPEG
Maximum Frame Rate: 30 fps (NTSC) and 25 fps (PAL) in 2MP Full HD 1080p (1920x1080)
Lens: Built-In Fixed Lens f=3.1 mm, F=2.0(Mega Pixel Lens)
View Angle:

H: 77° ±5%;
V: 57° ±5%

Electrics:

Shutter Time: Range from 1/10000s to 1/3.75s selectable (60Hz); Range from 1/10000s to 1/3.125s selectable (50Hz)
Audio: Two-Way Built-In MIC & Speaker; Mono Audio, Fullduplex, G.711 PCM 8kHz
Alarm: Triggered by External Input
Day/Night Mode: Auto Mode
Minimum Illumination:

IR LED OFF: 0.2lux@10IRE / 1.1lux@50IRE (F2.0, 1/15s)
IR LED ON: 0 Lux

IR LED: IR LED 9 pcs (850nm)
IR Distance: 10 meters (33ft.)
IR Turn On Status: Under 10 Lux by Auto-Control
LED Life: More than 10,000 hours (50ºC)
Video Port: 2-pin connector, 1.25mm wafer, 1.0Vp-p, 75O
Video Output NTSC:

720 X 480 @30fps
PAL: 720 X 576 @25fps

RTC: Real-Time Clock Calendar
Image Enhancement:

Exposure Mode: Auto/Manual
White Balance: Auto/Manual
Backlight Compensation: 5x5 Zones Selectable
Sharpness, Saturation, Brightness, Contrast: 255 Level Sensitivity

Local Storage:

Memory Card: Micro SD/ Micro SDHC Card up to 32 GB
SD Card Overwrite: Yes
Store Category: Alarm / Motion / Schedule/ Un-Interrupt Recording

Power Supply:

Power Requirement: DC 12V ± 10% / PoE (IEEE 802.3af)
Power Connector: DC Jack (2.0mm)
Power Consumption(Max): 7.0W (NCC800), 7.5W (NCC800WL)
LED Indicator: x1 Power LED (Red)

Environment:

Operating Temperature: -10ºC ~ 50ºC (-14ºF ~ 122 ºF)
Operating Humidity: 10~ 90% RH
Storage Temperature: -20ºC ~ 60ºC (-4ºF ~ 140 ºF)
Regulation: CE, FCC (class B), RoHS

I/O Connector:

Alarm Port: Terminal block x1 In / x1 Out
Audio In / Out: 3.5mm Phone Jack 1 In / 1 out
Power: DC 12V
Video: Video out x1, 2-pin to BNC Video out
LAN: RJ-45 x1 (10Base-T/100Base-TX)
USB: USB Port x1 (for USB Wi-Fi Dongle)
Reset: Rebooting System within 5 sec.; Restoring Factory Default Up to 5 sec. or more
Memory Card: MicroSD/SDHC Card Slot
