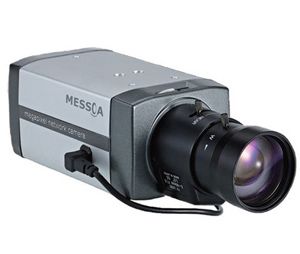

Messoa Technologies MES-NCB858HN5 5-Megapixel Fixed Network Camera
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
600.02 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Messoa Technologies MES-NCB858HN5 5-Megapixel Fixed Network Camera
Features:
Model: MES-NCB858HN5
Product Type: 5-Megapixel Fixed Network Camera
Video:
Sensor Type: 1/3.2" Image Sensor Optimized For Low-Light Perfomance
Active Pixels: 2592x1944 (HxV)
Compression: H.264/MPEG4/Motion JPEG
Streaming: Triple Simultaneous Streams
Resolution: 2592x1944 (5MP), 2048x1536 (3MP), 1080p, SXVGA, 720P, XGA, SVGA, D1, VGA, 2CIF, CIF
Max. Frame Rate:
5MP 4:3 (2592x1944) at 10 fps (NTSC) and 10 fps (PAL)
3MP 4:3 (2048x1536) at 20 fps (NTSC) and 20 fps (PAL)
2MP 16:9 (1920x1080) at 30 fps (NTSC) and 25 fps (PAL)
Day/Night: Mechanical (ICR) D/N Control
Day/Night Mode: Auto, Forced BW, Forced Color, External
Shutter Time: 1/10000s to 1/3.75s Selectable (60Hz); 1/10000s to 1/3.125s Selectable (50Hz)
Minimum Illumination:
Color: 0.25 Lux @10IRE; 0.60Lux @50IRE (F1.2, Shutter Speed: 1/15sec)
B/W: 0.20Lux @10IRE; 0.50Lux @50IRE (F1.2, Shutter Speed: 1/15sec)
Lens Mount: CS Mount; Adjustable Lens Back Focus
Lens:
Iris Control: DC Iris
Lens Mount: CS Mount; Adjustable Lens Back Focus
Audio:
Audio Comm.: Two-Way Mono Audio, Full-Duplex
Compression: G.711, PCM, 8kHz
Audio In/Out: External Microphone and Speaker
Image Enhancement:
Digital WDR: Yes; 5 Level Sensitivity
Privacy Zone: Yes; Customized Threshold Privacy Zone
Image Orientation: Mirror, Flip
Frequency Control: 50Hz, 60Hz
Date & Time Stamp: Yes
Intelligent Video & Event Management:
Motion Detection: 5 x 5 Zones, 5 Level Sensitivity or Customized Threshold
Face Detection 3 level sensitivity
Audio Detection: 5 Level Sensitivity or Customized Threshold
Blur Detection: Customized Sensitivity in Seconds
Ethernet Detection: Network Loss Detection
Smart Encoding: Configurable ROI
I/O & Controls:
Power: Screwless Terminal Block
Power LED Indicator: Yes
Alarm In/Out: Terminal Block 2 in / 1 out
Network: RJ-45 with LEDs
Audio In/Out: 3.5mm Phone Jack 1 in / 1 out
RS-485: Reserved
Analog Video: BNC X1, 1.0Vp-p, 75O
Reset: Within 5 secs to Reboot; More than 5 secs to Load Default
Power:
Power Requirement: DC 12V & AC 24V ± 10% / PoE(IEEE 802.3af)
Power Consumption: 6W max
Mechanical:
Dimensions(DxH): 114 x 66 x 65 mm (4.5" x 2.6" x 2.6")
Weight: 320g (0.70 lb) w/o lens
Environmental:
Operating Temperature: -10ºC ~ 50ºC (-14ºF ~ 122 ºF)
Operating Humidity: 10 ~ 90% RH
Storage Temperature: -20ºC ~ 60ºC (-4ºF ~ 140 ºF)
