McKinney TA2714-4-1-2x4-1-2-P-NRP

Name: McKinney TA2714-4-1/2 x 4-1/2-P-NRP 4-1/2" x 4-1/2" Full Mortise Hinge,Standard Weight, 5-Knuckle, Ball Bearing, Non Removable Pin - Prime Coat Finish
Brand: McKinney
SKU: McKinney TA2714-4-1-2x4-1-2-P-NRP
Price: 11.24 USD

McKinney TA2714-4-1/2 x 4-1/2-P-NRP 4-1/2" x 4-1/2" Full Mortise Hinge,Standard Weight, 5-Knuckle, Ball Bearing, Non Removable Pin - Prime Coat Finish

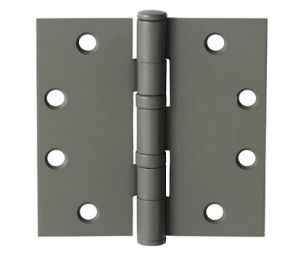

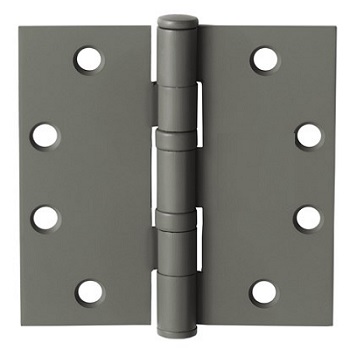

× This image is for a similar product but it will differ in size, color and/or other attributes.

McKinney TA2714-4-1/2 x 4-1/2-P-NRP 4-1/2" x 4-1/2" Full Mortise Hinge,Standard Weight, 5-Knuckle, Ball Bearing, Non Removable Pin - Prime Coat Finish

Price: $11.24 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

McKinney TA2714-4-1-2x4-1-2-P-NRP 4-1/2" x 4-1/2" Full Mortise Hinge,Standard Weight, 5-Knuckle, Ball Bearing, Non Removable Pin - Prime Coat Finish

Full Mortise Hinge
Finish: Prime Coat
Height: 4.5"
Width: 4.5"
Material: Steel
ANSI Cross Reference: A8112
Gauge: .134
Fasteners:
- Machine: 1/2 x 12-24
- Wood: 1-1/4 x 12
Number of Knuckles: 5
Number of Holes: 8
Square Corner
Ball Bearing
Standard Weight
Non Removable Pin
Use for common flush door/frame/wall applications
Recommended for standard weight, medium frequency doors, or doors with closing devices
Note: Specifications of product in image may differ from product being sold
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Video Detail Page

Questions and Answers

Q: what is the pin diameter

A: .314" is the diameter of this hinge pin.
