McKinney TA2314-4-1-2X4-32D-NRP

Name: McKinney TA2314-4-1-2X4-32D-NRP 4-1/2" x 4-1/2" Full Mortise, 5-Knuckle, Standard Weight, Ball Bearing Hinge, Non Removable Pin - Satin Stainless Steel Finish
Brand: McKinney
SKU: McKinney TA2314-4-1-2X4-32D-NRP
Price: 36.63 USD

McKinney TA2314-4-1-2X4-32D-NRP 4-1/2" x 4-1/2" Full Mortise, 5-Knuckle, Standard Weight, Ball Bearing Hinge, Non Removable Pin - Satin Stainless Steel Finish

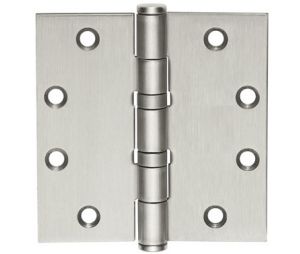

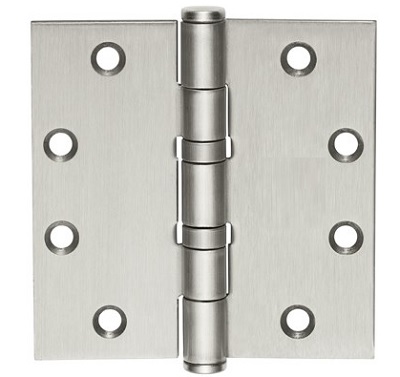

× This image is for a similar product but it will differ in size, color and/or other attributes.

McKinney TA2314-4-1-2X4-32D-NRP 4-1/2" x 4-1/2" Full Mortise, 5-Knuckle, Standard Weight, Ball Bearing Hinge, Non Removable Pin - Satin Stainless Steel Finish

Price: $36.63 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

McKinney TA2314-4-1-2X4-32D-NRP 4-1/2" x 4-1/2" Full Mortise, 5-Knuckle, Standard Weight, Ball Bearing Hinge, Non Removable Pin - Satin Stainless Steel Finish

Full Mortise Hinge
Finish: Satin Stainless Steel
Height: 4.5"
Width: 4.5"
Material: Stainless Steel
ANSI Cross Reference: A5112
Gauge: .134
Fasteners:
- Machine: 1/2 x 12-24
- Wood: 1-1/4 x 12
Number of Knuckles: 5
Number of Holes: 8
Square Corner
Ball Bearing
Standard Weight
Non Removable Pin
Use for common flush door/frame/wall applications

Recommended for standard weight, medium frequency doors, or doors with closing devices

Note: Specifications of product in image may differ from product being sold
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Questions and Answers

Q: Hi AB Supply, Amazing website and videos. Thank you for all your work in creating this. Could you confirm whether the pin direction can be reversed for the following Non-Removable Pin hinge? For example: remove the set screw; remove the pin; insert the pin from the opposite direction; and then re-install the set screw.

A: I can confirm the pin direction can be reversed for the McKinney TA2314-4-1-2X4-32D-NRP 4-1/2" x 4-1/2" Full Mortise, 5-Knuckle, Standard Weight, Ball Bearing Hinge, Non Removable Pin - Satin Stainless Steel Finish hinge

Heres the link to the video showing how this is done:

Click Here
