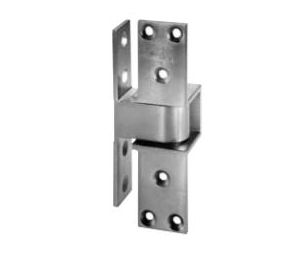

McKinney PH-4-26D

Recommended for applications where use of the full width of the corridor is required, such as cross corridor and smoke and fire doors as well as patient room doors

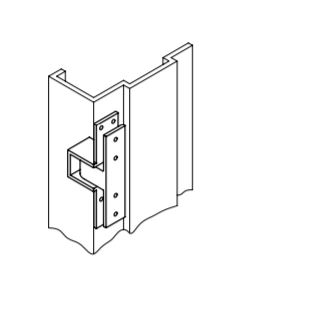

• The Full Mortise Pocket Pivot Hinge is designed to give a flush appearance to the corridor when the door is open and recessed into a pocket in the corridor wall
• For single and cross corridor doors, the PH-4 allows the door to lay against the wall with no projection into the opening and no gap between the door and frame
• When combined with a floor closer, this application has minimum visible hardware and clearances
• The PH-4 Full Mortise Pocket Pivot Hinge meets material and performance requirements of NFPA-80 and ANSI A-156-1
• Two thrust bearings for vertical loads
• Roller bearing for lateral support
• Listed for both hollow metal or steel covered composite fire doors rated up to 3 hours
• Listed for wood core type fire doors rated 20 minutes
• Non-handed
• Finish: Satin Chrome
• Packing & Sold as : Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
