McKinney MPB79-4-1-2X4-1-2-26D-QC8

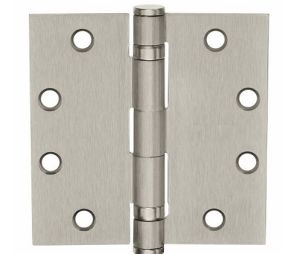

Name: McKinney MPB79-4-1-2X4-1-2-26D-QC8 4-1/2" x 4-1/2" MacPro Hinge, Full Mortise, 5-Knuckle, Standard Weight, 8-Wire, ElectroLynx Connector - Satin Chrome Finish
Brand: McKinney
SKU: McKinney MPB79-4-1-2X4-1-2-26D-QC8
Price: 192.37 USD

McKinney MPB79-4-1-2X4-1-2-26D-QC8 4-1/2" x 4-1/2" MacPro Hinge, Full Mortise, 5-Knuckle, Standard Weight, 8-Wire, ElectroLynx Connector - Satin Chrome Finish

× This image is for a similar product but it will differ in size, color and/or other attributes.

McKinney MPB79-4-1-2X4-1-2-26D-QC8 4-1/2" x 4-1/2" MacPro Hinge, Full Mortise, 5-Knuckle, Standard Weight, 8-Wire, ElectroLynx Connector - Satin Chrome Finish

Video Review McKinney MPB79-4-1-2X4-1-2-26D-NRP 4-1/2" x 4-1/2" MacPro Hinge, Full Mortise, 5-Knuckle, Standard

Price: $192.37 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

McKinney MPB79-4-1-2X4-1-2-26D-QC8 4-1/2" x 4-1/2" MacPro Hinge, Full Mortise, 5-Knuckle, Standard Weight, 8-Wire, ElectroLynx Connector - Satin Chrome Finish

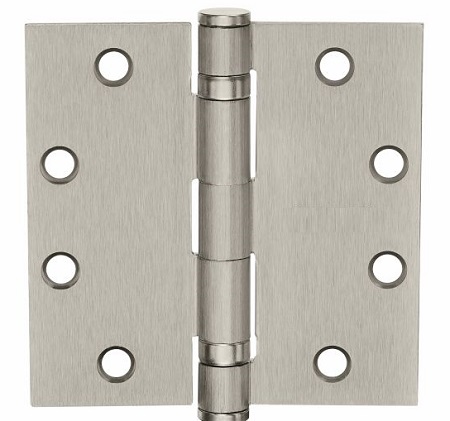

Full Mortise Hinge
Finish: Satin Chrome

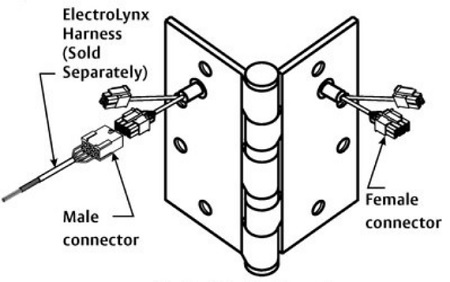

QC8 Option:
- Electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating tampering and improving the aesthetics of the door opening
- For 4 amp continuous @ 24 volts AC or DC per circuit, 28 gauge multi-strand wires are used. A pigtail is provided for connection to the source wiring
- 8 position connector
- 4 circuits
Height: 4.5"
Width: 4.5"
Material: Steel
Fasteners:
- Machine: 1/2 x 12-24
- Wood: 1-1/4 x 12
ANSI Cross Reference: A8112
Gauge: .134
Number of Knuckles: 5
Number of Holes: 8
Square Corner
Ball Bearing
Standard Weight
For Standard Weight Doors with a Closing Device
Electric hinges should be installed in the center position on the door. Installation instructions are packed with each hinge.
Electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating tampering and improving the aesthetics of the door opening
Note: Specifications of product in image may differ from product being sold
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
