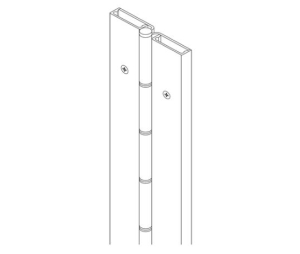

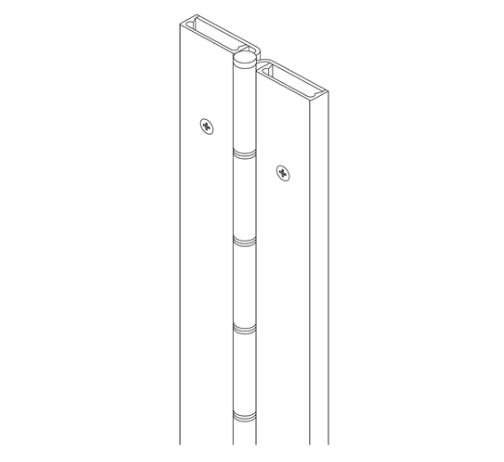

Markar FS102-001-313

The Markar 100 Series surface-mounted Pin And Barrel continuous hinges are an ideal solution for sagging doors. This flush mounted hinge allows perfect alignment for retrofitting hollow metal, wood, or aluminum doors within the existing conditions. No need to readjust weather-stripping.

This series is extruded using 30% more aluminium than most geared hinges providing for exceptional strength and durability. The 100 Series Hinges are NOT fire rated.

• Continous Hinge 83" long
• 3/16" diameter stainless steel barrel type hinge pin
• Medical bearings
• Aluminum end pins
• No exposed mounting fasteners
• Universal screw pack includes 1/4-14 x 3/4 Security TORX TEK Screws
• 6063-T6 aluminum alloy
• Standard finish: Dark Bronze Anodized
• Optional finishes available
• ANSI/BHMA Standard A156.26 Grade 2
• Hinge Type: Continuous Hinge, Full Surface
• Bearing Type: Pin in Barrel
• Type: Hinges and Pivots
• Sub Type: Continuous Hinge
• Security Lock UID: MAR100FS102001313
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
