Lockey 2230-KO-SC

copy to clipboard

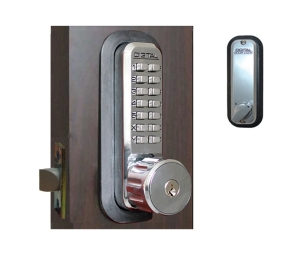

Lockey 2230-KO-SC Pushbutton Lock 2230-KO-SC, Springlatch with Key Override, Satin Chrome

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Lockey 2230-KO-SC Pushbutton Lock 2230-KO-SC, Springlatch with Key Override, Satin Chrome
More from Lockey USA
Price: $184.98 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

1-773-809-3667

Sales
Technical Support
Product Description:
Lockey 2230-KO-SC Pushbutton Lock 2230-KO-SC, Springlatch with Key Override, Satin Chrome

Pushbutton Lock 2230-KO-SC is a mechanical keyless lock with Key Override and Satin Chrome finish. This is a self-locking keyless entry system featuring a deadlocking spring latch with a burglar proof plunger for added security. The lock is most commonly used on custodial and maintenance closets. 2230-KO-SC is dedicated to both residential and commercial applications. One user code with thousands of possible combinations works as a lock key. To change the code the lock must be taken off the door. The Pushbutton Lock is very easy and quick to install - installs in minutes with EZ plates and very easy to change code. Comes with adjustable backset deadlocking spring latch (2 3/8" and 2 3/4"). Mounts in standard 2 1/8" hole. For thicker doors, an Extension Kit is available - extensions for doors up to 5? in width. The 2230-KO-SC has changeable/reversible handing.

  • Product Type: Pushbutton Lock
  • Dedicatd to: Exterior or interior use
  • Suitable for: Gates, fences, access doors that require a combination to enter or exit
  • Dimensions:
    • Width: 1 5/8"
    • Depth: 1 5/8"
    • Height: 5 5/8"
  • Total Coverage with Trim Plates:
    • Width: 2 1/2"
    • Depth: 1/4"
    • Height: 6 1/2"
  • Color: Satin Chrome
  • Material: Zinc-plated steel, teflon coated stainless steel interior components
  • Backset: Adjustable
  • Door Thickness: 1 3/16" to 2", up to 5" with an Extension Kit
  • Locks automatically
  • Deadlocking spring latch
  • For right or left handed doors/changeable handing
  • Easy code change as often as required
  • To change the code the lock must be taken off the door
  • Mechanical reliability
  • Lifetime Mechanical Warranty
  • Packing & Sold as: Each
  • Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
