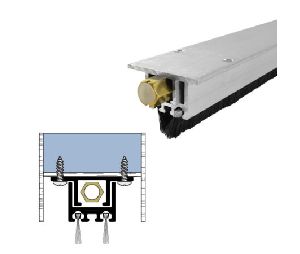

Legacy 72553-MA-PV-TD-FL-LIG 66" Concealed Automatic Door Bottom with NB insert for Pivoting Doors, Top Door Installation, Fire Label, Ligature Resistant, Mill Aluminum

× This image is for a similar product but it will differ in size, color and/or other attributes.

Legacy 72553-MA-PV-TD-FL-LIG 66" Concealed Automatic Door Bottom with NB insert for Pivoting Doors, Top Door Installation, Fire Label, Ligature Resistant, Mill Aluminum

+ Add to My Wish List

Quote Only Item

This item must be quoted prior to order. Please Contact Us for further details.

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Legacy 72553-MA-PV-TD-FL-LIG 66" Concealed Automatic Door Bottom with NB insert for Pivoting Doors, Top Door Installation, Fire Label, Ligature Resistant, Mill Aluminum

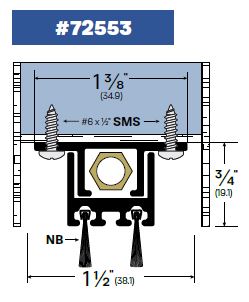

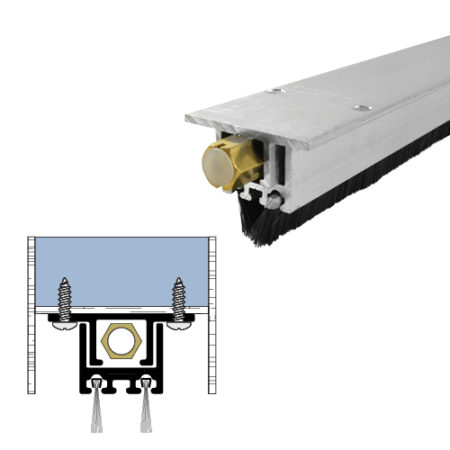

Concealed Automatic Door Bottom
For Pivoting Doors
Length: 66"
Finish: Mill Aluminum

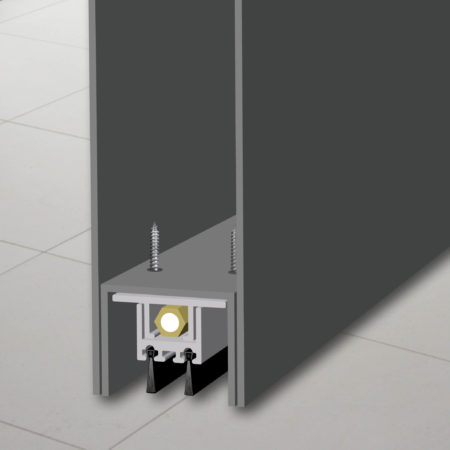

Top Door Installation
FL - Fire Label option is used when your application requires the visual evidence to the authority of the jurisdiction or the door inspector of the integrity of the fire rating of the hardware, a physical label is applied to the hardware
LIG - Ligature Resistant option features a non-removable adjusting-activating nut
Insert: NB - Nylon Brush Extrusion
Replacement insert 4075NB-66 available
No end cap provided
Maximum 1/2" drop / adjustable
Standard #6 x 1/2" SMS self-drilling screws supplied
Brass Hex Nut
For use on 1-3/4? and larger Hollow Metal doors
3.5 million cycles tested
Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors
Can be made any size from 12" to 144". Simply order the next longest length and specify in the comments field the exact length you require.
