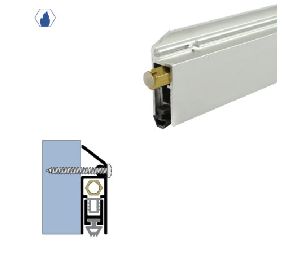

Legacy 7123-CA-EA-PULL 74" Surface Automatic Door Bottom with SRE insert for Swinging Doors, Electrical Actuator, Pull Option, Clear Anodized Aluminum

× This image is for a similar product but it will differ in size, color and/or other attributes.

Legacy 7123-CA-EA-PULL 74" Surface Automatic Door Bottom with SRE insert for Swinging Doors, Electrical Actuator, Pull Option, Clear Anodized Aluminum

+ Add to My Wish List

Quote Only Item

This item must be quoted prior to order. Please Contact Us for further details.

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Legacy 7123-CA-EA-PULL 74" Surface Automatic Door Bottom with SRE insert for Swinging Doors, Electrical Actuator, Pull Option, Clear Anodized Aluminum

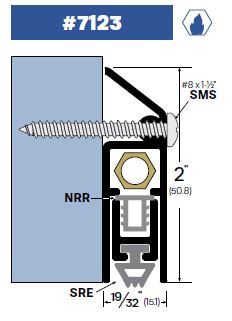

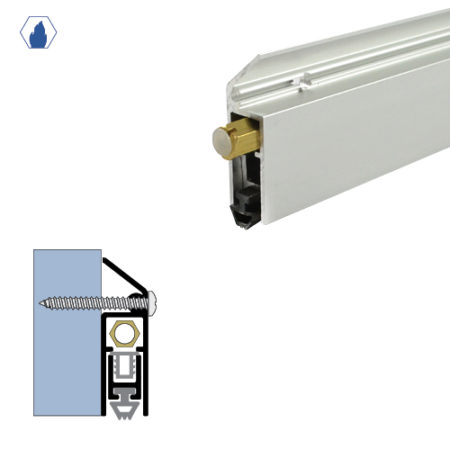

Surface Automatic Door Bottom
For Swinging Doors
Length: 74"
Finish: Clear Anodized Aluminum
EA - Electrical Actuator option includes a motorized part that gets mounted inside the wall behind the door frame and has a solenoid that penetrates through the frame and depresses the actuator of the automatic door bottom
PULL option allows the removal of the internal component tree from either side of the door without disassembling the automatic door bottom
Insert: Black SRE - Black Solid Rubber Extrusion
Replacement insert 4023SRE-74 available
No end cap provided
Includes noise reduction rubber
Maximum 5/8" drop / adjustable
Standard #8 x 1/2" SMS self-drilling screws supplied
Brass Hex Nut
3.5 million cycles tested
Fire Rated
Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors
Can be made any size from 12" to 144". Simply order the next longest length and specify in the comments field the exact length you require.
