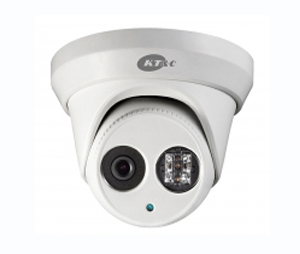

KT & C KTC-KNCP4TR4XIR

Model: KNCP4TR4XIR

Features:

• Omni IP 'hand free' Plug-and-Play system: just connect to PoE switch and stream video
• View and record 4MP resolution at up to 20FPS from 1/3" progressive scan CMOS sensor
• Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)
• Low light sensitivity of 0.01lux with
  • True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity
  • Low/no light coverage enhanced by EXIR Super Beam IR LED with 100 foot range
  • Smart IR Control of image contrast despite bright, close in objects in scene
• H.264+ substantially reduces main stream bandwidth and HDD file size when used with compatible KT&C NVRs
• True 120db WDR to handle the most challenging of bright or unbalanced lighting conditions
• Extensive OSD capabilities, many controlled directly from Omni IP NVR
  • Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s
  • Region of Interest allocates bandwidth to maximize resolution in priority areas within scene
  • Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired)
  • In-camera detection of motion, video loss or tampering with alarm reporting to NVR
  • 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization
  • DWDR compensates bright or unbalanced scene lighting
  • BLC specifically for handling scenes with back lit subjects
• Lens focal length of 4mm covers 70° field of view; optional 2.8mm lens for wider view
• Dual PoE/12VDC power
  • PoE for efficiency and convenience
  • 12VDC for legacy system upgrade or beyond PoE cable distance range
• Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range
• Turret style housing is adjustable for 360° pan and rotatation, with 75° tilt for flexible positoning
• Support for Safari/Chrome/FireFox/IE web browsers with free plug-in
• Customize installation with KA-TRWM1 Wall Arm; KA-BRPM1 Pole Mount & KA-BRCM1 Corner Mount for use with KA-TRWM1
