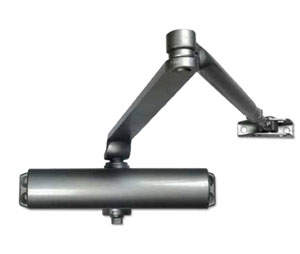

International Closers 853-P DU

• Surface Mount Closer with Parallel Arm
• Use for 36" interior door size and 32" swing out exterior door size and 28" swing in exterior door size
• This is a complete unit. Includes:
  • Thru Bolt & Grommet Nut (Set of 4 each) - TBGN-50
  • Main Arm - 520
  • Regular Forearm - 521
  • Parallel Bracket for Regular Arm - 525
  • Flat Drop Bracket - 537
  • Dress Cover - DC-8000
• Use for Center Hung Double or Single Acting Doors an Offset Hung Single Acting Doors
• Two speed control Valves: Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation Universal application.
• Non-handed for standard, top jamb or parallel arm installation.
• Available with regular, hold-open or fusible link hold open arms.
• Rack and pinion mechanism contained in a high tensile precision cast aluminum housing assures the highest quality.
• Stable hydraulic door check fluid for any climatic operation and constant lubrication.
• Narrow design permits installation on most modern glass and aluminum doors without adaptors.
• UL-Listed

853 Series Door Closer Parts

	Thru Bolt & Grommet Nut (Set of 4 each)	TBGN-50
	Main Arm	520
	Regular Forearm	521
	Parallel Bracket for Regular Arm	525
	Flat Drop Bracket	537
	Dress Cover	DC-8000
