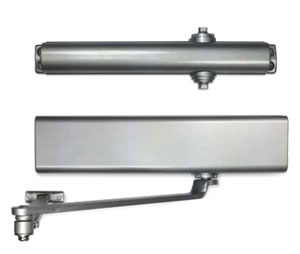

International Closers 5001-TPx501xTBGN-50-DU

• Adj Spring Pwr Tri-Pack Surf Mnt Door Closer w/
• This is a complete unit. Includes:
• Dress Cover - DC-5000
• Complete Arm Assembly - 501
• Parallel Bracket for Regular Arm - 525
• Thru Bolt & Grommet Nut (Set of 4 each) - TBGN-50
• -
• Finish: Storefront Bronze
• ADA (Handicap) multi·sized closer with adjustable spring power for a range of sizes. 1-6 adjustable back check and delay action, adjustable after installation.
• Two Speed Control Valves: Closing and latching speeds controlled by separate regulating valves, adjustable after installation.
• Universal application. Non-handed for standard, top jamb or parallel arm installation.
• Furnished with dress cover and PA bracket.
• Rack and pinion mechanism contained in a high tensile precision cast aluminum housing.
• Stable hydraulic door check fluid for any climatic operation and constant lubrication.
• Optional, hold-open arms.
• Hold-open arms are adjustable for holding from 90° to 180°
• 10 year Warranty

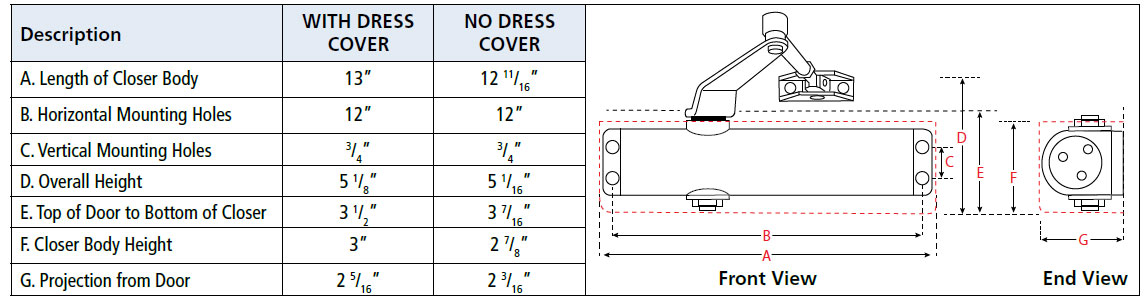

• Length of Closer Body (With Cover): 13”
• Vertical Mounting Holes: 3/4”
• Overall Height: 5-1/8”
• Top of Door to Bottom of Closer: 3-1/2”
• Closer Body Height: 3”
• Projection from Door: 2-5/16”
• 5001-TP replaces models 5001, 5002 & 5003
• ANSI/BHMA A156.4 Grade 1 Certified
• UL/C-UL Listed
• UL 10B and UL 10C Compliant for positive pressure
• Certified to Conform to UBC 7-2 (1997, UL 228)
• Barrier Free Operation to Comply with Federal Accessibility Standards (ADA): Complying with ANSI A117.1 (4.13.11)

5001-TP Series Door Closer Parts

	Complete Arm Assembly	501
	Hold-open Forearm	522
	Parallel Bracket for Regular Arm	525
		TBGN-50
	Sex Nuts Set of 4	18-SN
