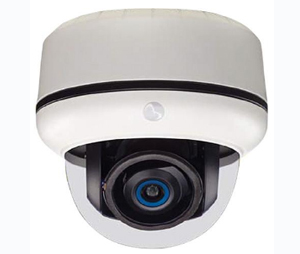

Model: ADCI600D543
Specifications:
- Operational:
- Video Compression: H.264, MJPEG
- Maximum Frame Rate: H.264 & MJPEG: 30 ips 1280 x 720
- Video Output: 1 Vpp, 75 O, composite, RCA service output
- Resolution: CIF, 4 CIF, 720p
- Imager: 1/2.7" CMOS progressive scan
- Light Sensitivity: 400 to 900 nm
- Day/Night: Auto (True Day / Night)
- Alarms: Motion, Schedule, Dry contact, Ethernet loss, Tamper detection
- Audio: Bi-directional duplex, half-duplex
- Alarm I/O: Input: 2; Output: 1
- Video Streams: 2 simultaneous streams
- Minimum Illumination: 0.2 lux at F1.8 color; 0.05 lux at B&W
- Wide Dynamic Range: 70 dB, 9 level settings
- Lens Type: Telephoto manual auto focus 9-40 mm
- Network:
- Interface: Ethernet 10/100Base-TX
- Ethernet Port: RJ-45
- Supported Protocols: TCP/IP, DHCP, HTTP, ICMP, UPnP, ARP, DNS, DDNS, PPPoE, SMTP, FTP, RTSP
- Web Browser: MS IE 8
- Security: Multi-level, multi-users, IP address filtering, user access log, HTTPS
- Storage:
- Card: Supports microSDHC 2.0 up to 32 GB
- Recording Format: JPEG, AVI
- Playback: Via browser using FTP
- Safety: Triggered by Alarm, Network Loss, Schedule, Motion Detection
- Users: 8, simultaneous
- Electrical:
- Power Input: 12 VDC, 24 VAC, PoE+ IEEE802.3at, Class 4
- Power Draw: 46.5 W via 24 VAC; 25 W via PoE+
- Physical:
- Housing: White / black
- Operating Temperature: 40°F to 122°F (4°C to 50°C) via PoE; -22°F to 122°F (-30°C to 50°C) via PoE+, -40°F to 122°F (-40°C to 50°C) via 24 VAC
- Dimensions (W x H): 6.18" x 5.79" (156.97 mm x 147.06 mm)
- Weight: 2.30 lb (1.04 kg)
|
