US10/612/Satin Clear Coated Bronze
>
IVES 7259 BTM-US10
IVES 7259 BTM-US10

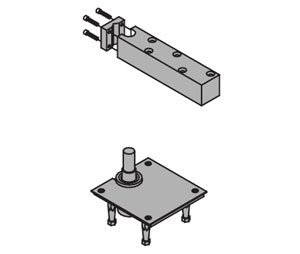

IVES 7259 BTM-US10 Heavy Duty 1-1/2" Center Hung Bottom Pivot only - Satin Bronze
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,119.25 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
Additional Declarations -
This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
IVES 7259 BTM-US10 Heavy Duty 1-1/2" Center Hung Bottom Pivot only - Satin Bronze
Heavy Duty 1-1/2" Center Hung Bottom Pivot only
Material: Satin Bronze
Bottom pivot base frame mount
Use with 2" minimum door thickness
Easy installation tilt on bearing and bearing pin.
Adjustable floor to door clearance 3/16" to 3/4", consult factory if greater than 3/4".
Maximum door load 1000 pounds.
Vertical adjustment range 3/16", with positive locking
Meets ANSI/BHMA A156.4 C07011
Non-Handed
Template
Product Brochure
Click to enlarge image

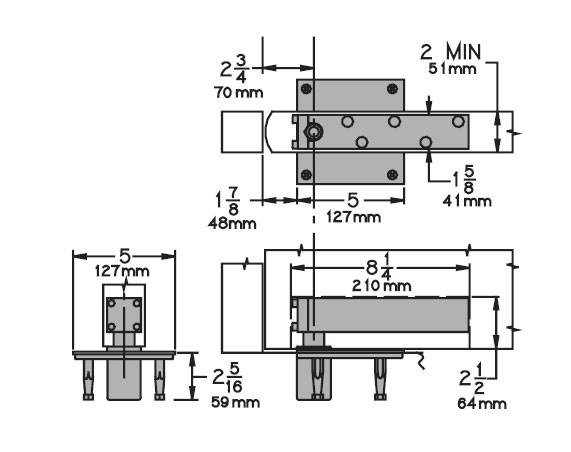

Dimensions
Click to enlarge image
Ives Company Video
