IVES 7244F SET-US32D

Name: IVES 7244F SET-US32D Heavy Duty 1-1/2" Offset Top & Bottom Pivot Set - Fire Rated - Satin Stainless Steel
Brand: Ives
SKU: IVES 7244F SET-US32D
Price: 1074.49 USD

IVES 7244F SET-US32D Heavy Duty 1-1/2" Offset Top & Bottom Pivot Set - Fire Rated - Satin Stainless Steel

× This image is for a similar product but it will differ in size, color and/or other attributes.

IVES 7244F SET-US32D Heavy Duty 1-1/2" Offset Top & Bottom Pivot Set - Fire Rated - Satin Stainless Steel

Price: $1,074.49 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

IVES 7244F SET-US32D Heavy Duty 1-1/2" Offset Top & Bottom Pivot Set - Fire Rated - Satin Stainless Steel

Heavy Duty 1-1/2" Offset Top & Bottom Pivot Set - Fire Rated
Material: Satin Stainless Steel Steel
Top pivot header mount, bottom pivot base plate mount
Set consists of 7244F TOP Top Pivot and 7244F BTM Bottom Pivot
Use with 1-3/4" minimum door thickness
Maximum door load 400 pounds.
Non-handed
Vertical adjustment range 3/16", with positive locking
Meets ANSI/BHMA A156.4 C07162
UL Listed 3 Hour Fire Doors
Use optional 7244F-7245F Intermediate Pivot (handed) for each additional 100 pounds or doors over 7'.

Template

Installation for Top Pivot

Installation for Bottom Pivot

Product Brochure

Click to enlarge image

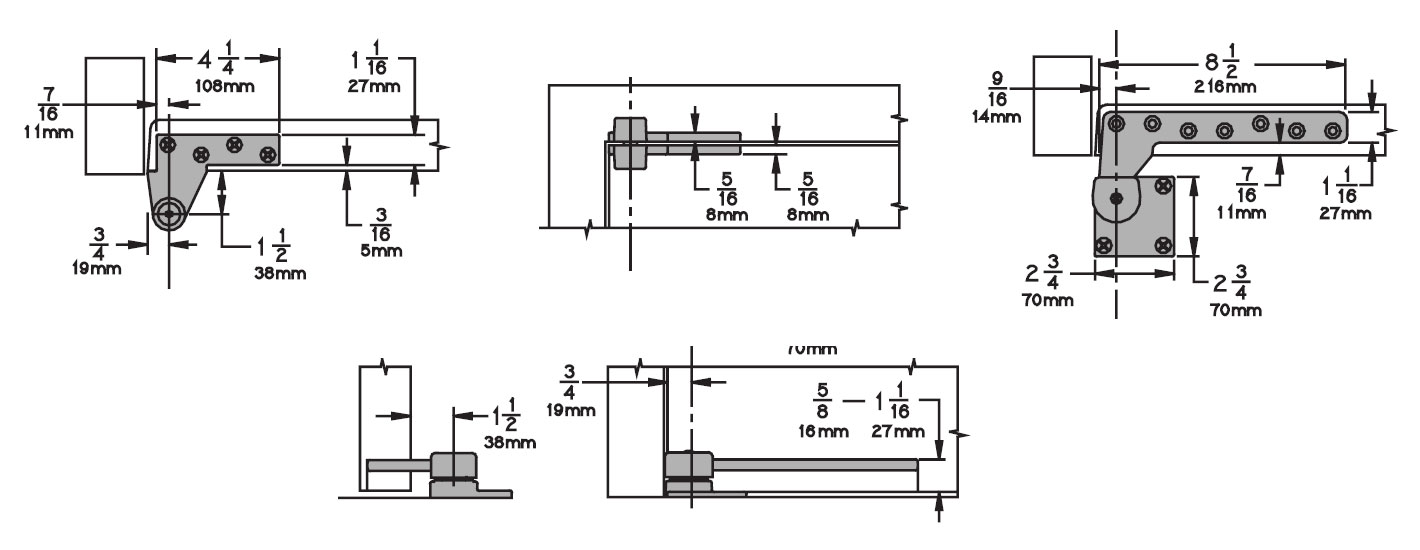

Dimensions

Click to enlarge image
