IVES 7244F BTM-SP313
IVES 7244F BTM-SP313

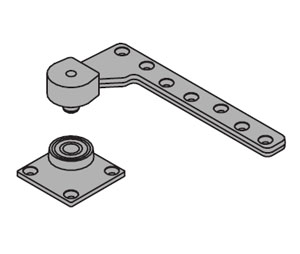

IVES 7244F BTM-SP313 Heavy Duty 1-1/2" Offset Bottom Pivot only - Fire Rated - Dark Bronze Painted
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
524.77 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 21 business days.
Additional Declarations -
This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
IVES 7244F BTM-SP313 Heavy Duty 1-1/2" Offset Bottom Pivot only - Fire Rated - Dark Bronze Painted
Heavy Duty 1-1/2" Offset Bottom Pivot only - Fire Rated
Material: Dark Bronze Painted Steel
Bottom pivot base plate mount
Use with 1-3/4" minimum door thickness
Maximum door load 400 pounds.
Non-handed
Vertical adjustment range 3/16", with positive locking
Meets ANSI/BHMA A156.4 C07162
UL Listed 3 Hour Fire Doors
Use optional 7244F-7245F Intermediate Pivot (handed) for each additional 100 pounds or doors over 7'.
Template
Installation for Bottom Pivot
Product Brochure
Click to enlarge image

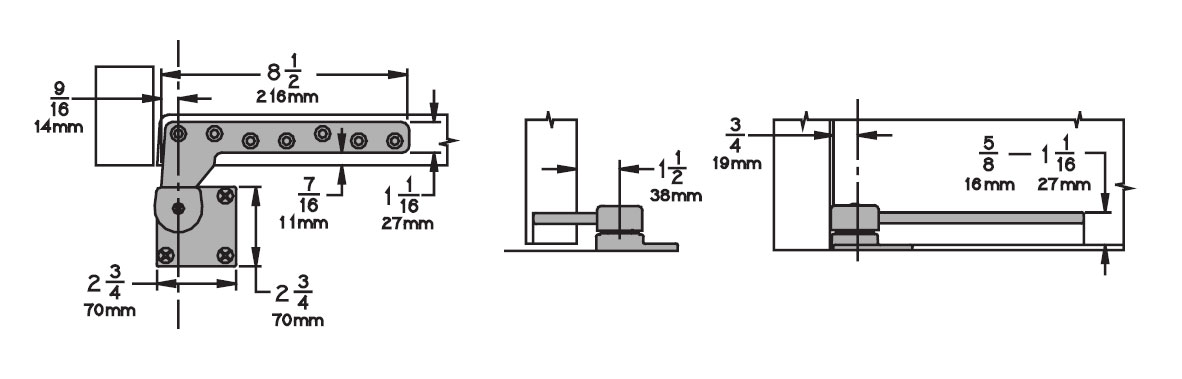

Dimensions
Click to enlarge image
Ives Company Video
