Product Description:

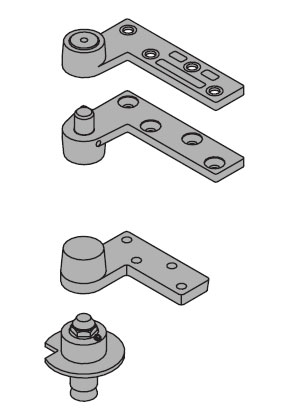

IVES 7222 SET-US32 RH 3/4" Offset Top & Bottom Pivot Set - Polished Stainless Steel - Right Handed
3/4" Offset Top & Bottom Pivot Set
Right Handed
Material: Polished Stainless Steel
Top pivot header mount, bottom pivot base plate mount
Set consists of 7222 TOP Top Pivot and 7222 BTM Bottom Pivot
Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 200 pounds.
Handed - Specify Left or Right Handed
Vertical adjustment range 3/16", with positive locking
Meets ANSI/BHMA A156.4 C07162
Use optional 7212, 7212V, 7222 Intermediate Pivot (handed) for each additional 100 pounds or doors over 7'.
Template
Installation for Intermediate Pivot/a>
Product Brochure
Click to enlarge image

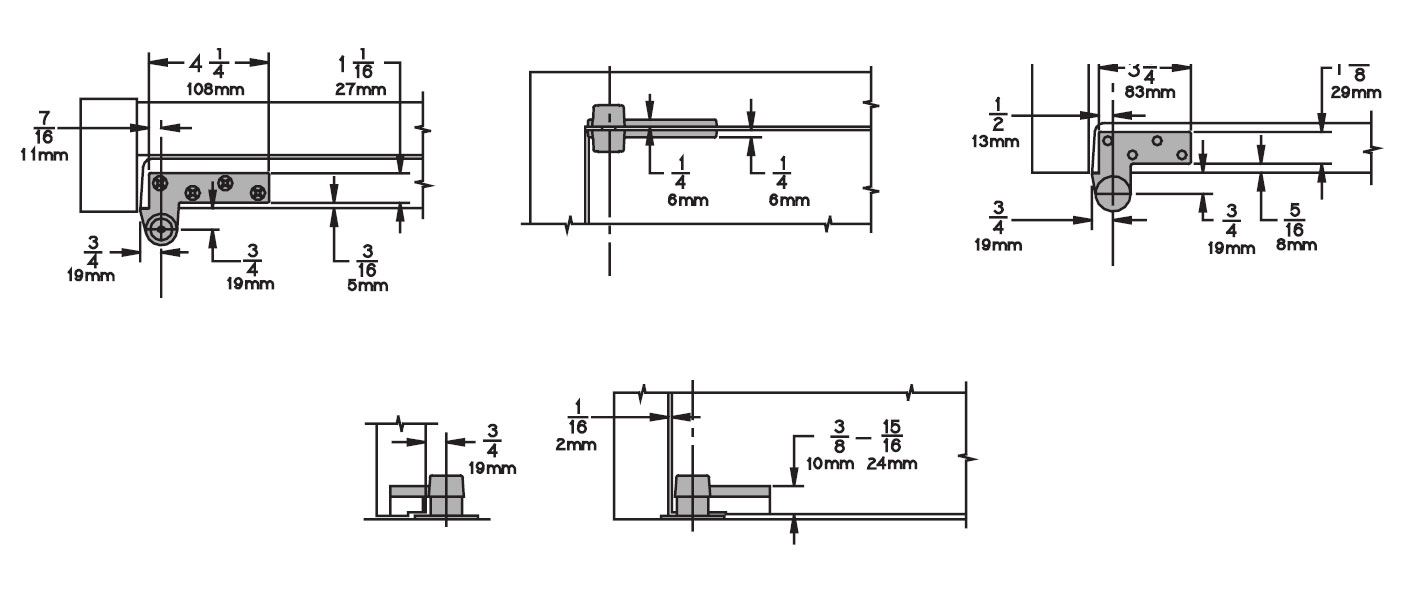

Dimensions
Click to enlarge image
Ives Company Video
