IVES 700CS-441-TWPCON-85

Name: IVES 700CS-441-TWPCON-85 85" Full Mortise Stainless Steel Covered Pin & Barrel Cont. Hinge w/TWP & All. Con. - Stainless Steel Anodized
Brand: Ives
SKU: IVES 700CS-441-TWPCON-85
Price: 1717.37 USD

IVES 700CS-441-TWPCON-85 85" Full Mortise Stainless Steel Covered Pin & Barrel Cont. Hinge w/TWP & All. Con. - Stainless Steel Anodized

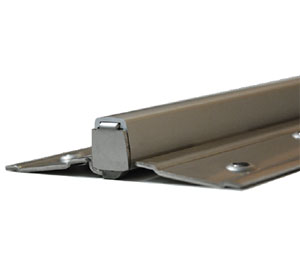

× This image is for a similar product but it will differ in size, color and/or other attributes.

IVES 700CS-441-TWPCON-85 85" Full Mortise Stainless Steel Covered Pin & Barrel Cont. Hinge w/TWP & All. Con. - Stainless Steel Anodized

Price: $1,717.37 USD

Indicate custom length required (Optional)

Indicate Door Material (eg. metal, wood, aluminum, etc...)

Indicate Frame Material (eg. metal, wood, etc...)

Comments (Optional)

Indicate manufacturrer and model of the electrical product being used (eg. Von Duprin EPT2)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

IVES 700CS-441-TWPCON-85 85" Full Mortise Stainless Steel Covered Pin & Barrel Cont. Hinge w/TWP & All. Con. - Stainless Steel Anodized

Full Mortise Stainless Steel Covered Pin & Barrel Cont. Hinge w/Through Wire Panel & Allegion Connect
Length: 85"
1/16" Door Inset
1-3/4" max door thickness
Equipped with twelve, 22 gauge wires
Comes with standard bottom hinge length of 34-5/8"
Center line to TWP mounting is 39-13/16"
Handing required when modified
Material: Grade 1 - 304, 14 gauge stainless steel
Finish: Stainless Steel Anodized
Medical grade nylon winged bearings, a patented design
Patented cover protects hinge knuckle and creates a cleaner and neater appearance
XY adjustability feature allows for better door alignment during installation
Use for beveled or square edge doors
For doors weighing up to 600 lbs.
48" maximum door width
ANSI/BHMA 156.26 Grade 1; 150lb door; 2,500,000 cycles
Fire rated: UL10C, 3 hour
Standard lengths: 83", 85", 95", 120"
Custom lengths are available up to 120". Specify your custom length requirements.
Standard Mounting Hardware: (5) - 12-24 X 3/4" Stainless steel self-drilling and self-tapping screws
Optional SEC – Optional hollow metal security fasteners: 12-24 X 1/2" Stainless steel machine screw Wood screw: #12 x 1-1/4" Sheet metal screw type AB - Stainless steel
Custom paint available. Additional minumum 6 weeks leadt time required. Tiger and Drylac paint is available. Contact us for more information.
