IVES 602-USP-95
IVES 602-USP-95

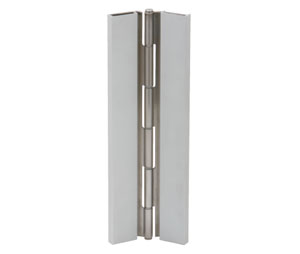

IVES 602-USP-95 95" Full Surface Pin and Barrel Continuous Hinge - Steel Primed for Paint
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
516.15 USD
In Stock Ready for Shipment
Select Custom Length
Custom length not required
Custom length required (indicate in the field below custom length required) (Add $13.20)
Select Dutch Door Preparation
Dutch Door Preparation not required
Dutch Door Preparation required (Add $86.63)
Select Hospital Tip
Hospital Tip not required
Hospital Tip required (Add $86.63)
Select Screw Pack
Standard machine Screws
1/2 Wood 1/2 Machine Screws
Thread Forming Screws (Add $8.00)
Security Screws (Add $24.75)
Wood Screws (Add $14.03)
Optional Additional Screw Packs
Not required
Security Screws (Add $24.75)
Wood Screws (Add $14.03)
Thread Forming Screws (Add $14.03)
Indicate custom length required
(Optional)
Indicate Dutch Door Top & Bottom Net lengths (eg. 42" top, 42" bottom)
(Optional)
Indicate Door Material (eg. metal, wood, aluminum, etc...)
Indicate Frame Material (eg. metal, wood, etc...)
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
Additional Declarations -
This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
IVES 602-USP-95 95" Full Surface Pin and Barrel Continuous Hinge - Steel Primed for Paint
Continuous Pin & Barrel Hinge
Length: 95"
Full Surface, Flush Mounted
No inset
1/4" Diameter 304 Stainless Pin with Nylon Split Bearing
Brushed Aluminum Leaf Covers
Material: 1012 Cold-Rolled Steel
Finish: Primed for Paint
For doors weighing up to 600 lbs.
Use for bevel or square edge doors.
Standard lengths: 83", 85", 95", 120"
Custom lengths are available up to 120". Specify your custom length requirements.
Standard Mounting Hardware: #10 X 1/2" Self Drilling Self Tapping Screws, Cover Clips
Optional SEC - Security Fasteners Available - Torx Drive
Custom paint available. Additional minumum 6 weeks leadt time required. Tiger and Drylac paint is available. Contact us for more information.

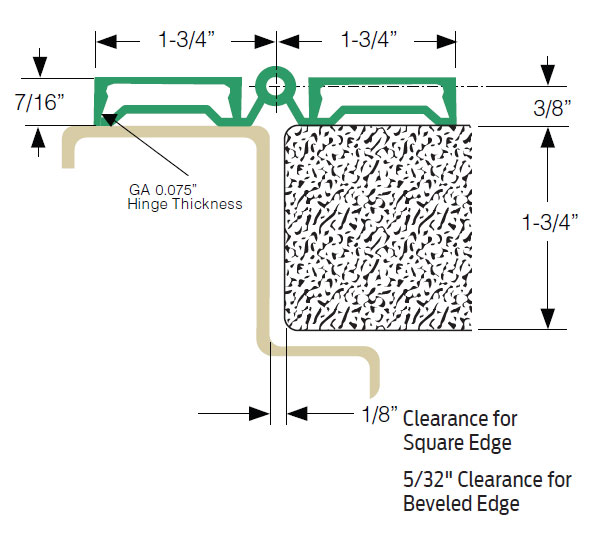

Template
Clearance Requirements
Product Brochure
