IVES 112HD-US28-83

Name: IVES 112HD-US28-83 83" Heavy Duty Full Mortise Alum Geared Cont Hinge - 1-9/16" Frame Leaf - Clear Anodized
Brand: Ives
SKU: IVES 112HD-US28-83
Price: 186.17 USD

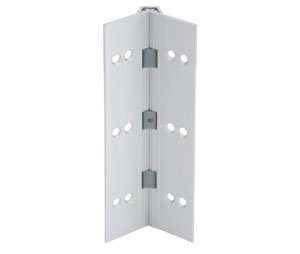

IVES 112HD-US28-83 83" Heavy Duty Full Mortise Alum Geared Cont Hinge - 1-9/16" Frame Leaf - Clear Anodized

× This image is for a similar product but it will differ in size, color and/or other attributes.

IVES 112HD-US28-83 83" Heavy Duty Full Mortise Alum Geared Cont Hinge - 1-9/16" Frame Leaf - Clear Anodized

Price: $186.17 USD

Indicate custom length required (Optional)

Indicate Door Material (eg. metal, wood, aluminum, etc...)

Indicate Frame Material (eg. metal, wood, etc...)

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

IVES 112HD-US28-83 83" Heavy Duty Full Mortise Alum Geared Cont Hinge - 1-9/16" Frame Leaf - Clear Anodized

Continuous Aluminum Geared Hinge
Length: 83"
Flush mounted
No inset
Frame leaf depth 1-9/16"
Non handed
Material: 6063-T6 Aluminum
Finish: Clead Anodized
Clearance: 5/16" for Square Edge Door, 1/32" for Beveled Edge Door
For doors weighing up to 450 lbs without reinforcing, 600 lbs with reinforcing
48" maximum door width
ANSI 156.26, Grade 3
Fire rated: UL 10C (90 minutes)
Standard lengths: 83", 85", 95", 120"
Custom lengths are available up to 120". Specify your custom length requirements.
Standard Mounting Hardware: 12-24 X 3/4" Steel Self Drilling, Self Tapping Screws
Optional WD - Wood Screws or SEC - Security Fasteners Available
Field Modifications: All Ives Aluminum Geared Continuous Hinges can be cut to length during installation. The unique mounting pattern allows to cut up to 6" from bottom while still having double row fasteners. If cut more than 13.5", other modifications may be necessary.
Custom paint available. Additional minumum 6 weeks leadt time required. Tiger and Drylac paint is available. Contact us for more information.

Template

Clearance Requirements

Product Brochure

Handing Chart

Click to enlarge image

Ives Company Video

Questions and Answers

There are currently no questions or answers.
