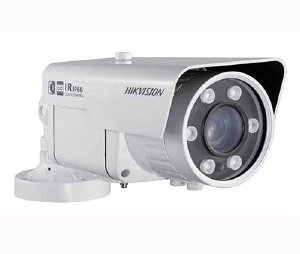

Hikvision HIK-DS2CC12A1NAVFIR8H

Model: DS2CC12A1NAVFIR8H

Features:

• Day/Night
• Outdoor
• IP66
• Heater
• 700TVL
• CCD
• 5-50mm Lens
• WDR
• IR
• 12VDC/24VAC

Specifications:

• Camera:

  • Image Sensor: 1/3" Sony CCD
  • Signal System: NTSC
  • Effective Pixels: 976 (H) x 494 (V)
  • Min. Illumination: Color: 0.3Lux@(F1.2,AGC ON),O Lux with IR
  • Black: 0.001Lux@(F1.2,AGC ON),0 Lux with IR
  • Shutter Speed: 1/60~1/100000s
  • Lens: 5-50mm Automatically
  • Day & Night: IR Cut Filter with Auto Switch
  • Synchronization: Internal/Power Synchronization
  • Video Output: 1Vp-p Composite Output (75 O/BNC); Test Monitor Out [1Vp-p Composite Output (75 O/BNC), Device Line]
  • S/N Ratio: More than 50dB
• Menu:
  • Camera ID: On/Off
  • Auto Gain: Low/Middle/High/Off
  • D/N Mode: Auto/Day/Night
  • White Balance: Auto Trace WB1/Auto Trace WB2/Manual/Auto Control
  • Privacy Masking: On/Off, Maximum 12 Zones
  • Motion Detection: On/Off
  • BLC: Area/Intensity/Off
  • WDR: Value/ Contrast / WD Exposure Compensation/ Return
  • Anti-flicker: On/Off
  • Language: English
  • Video: SMART IR, Eclipse, Digital Noise Reduction, Sharpness, Brightness, Saturation, Resolution, Electronic Image Stabilization, Digital Zoom, Mirror, Defect Pixel Correction
  • Scene: Indoor Standard, Indoor Backlight, Outdoor, Low Illumination, Customize, IR Standard
• General:

  • Working Temperature/Humidity: -40?~60?
  • Power Supply: 12VCD±10%/24VAC±10%
  • Rating: IP66
  • IR Range: approx 20 to 30 meters (60 to 90 ft)
  • Power Consumption: Max. 9.5 W
  • Dimensions: 3.81" x 3.31" x 12.42" (96.9 mm x 84.2 mm x 315.4 mm)
  • Weight: 2100 g (4.62 lbs)
