Hager 780-111HD-83-CLR-ETW-4-RH

Name: Hager 780-111HD-83-CLR-ETW-4-RH Concealed Leaf Continuous Geared Hinge, Heavy Duty, 83", 4-Wire, Aluminum
Brand: Hager
SKU: Hager 780-111HD-83-CLR-ETW-4-RH
Price: 377.51 USD

Hager 780-111HD-83-CLR-ETW-4-RH Concealed Leaf Continuous Geared Hinge, Heavy Duty, 83", 4-Wire, Aluminum

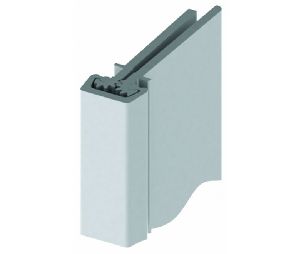

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hager 780-111HD-83-CLR-ETW-4-RH Concealed Leaf Continuous Geared Hinge, Heavy Duty, 83", 4-Wire, Aluminum

Price: $377.51 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hager 780-111HD-83-CLR-ETW-4-RH Concealed Leaf Continuous Geared Hinge, Heavy Duty, 83", 4-Wire, Aluminum

Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.

Hinge Type: Continuous Hinge, Concealed Leaf
Bearing Type: Continuous Gear
Height: 83"
Weight: Heavy Duty
Power Transfer: 4-28GA
Wire Length: 12"
Prep Location: 44" Top to Center
Grade: Grade 1
Finish: Satin Aluminum Clear Anodized
Base Material: Aluminum
Application: ETW-4 Through Wire
Limited Warranty: Lifetime, Electric Portion 1 Year
Fire Rated: 3 Hours Metal, 90 Min. Wood Composite (w/Studs)
Door Reinforcement/Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Clearance:
- 5/16" (8 mm) hinge side
- Plus standard lockside clearance
Application:
- Lead lined model for hospital x-ray room doors with double row of screws to straddle lead (specify"LL")
- Frame and door leaf alignment ribs for proper hinge and door location
- 1/8" (3 mm) inset
Fasteners: #12-24 X 11/16" Flat Head Self-Drill Screws
Images may not represent actual product and finish
Manufacturer: Hager
Security Lock UID: HAG100780111HD83CLRETW4RH
Packing & Sold as: Each
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
