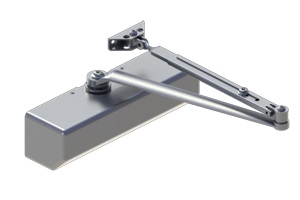

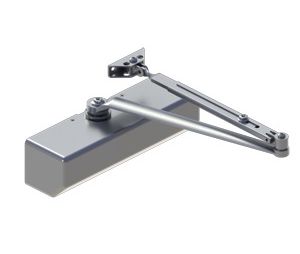

5300 Series
- BHMA Certified ANSI A156.4, adjustable sizes 1-6
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Lifetime Warranty - Aluminum Alloy
The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
Full plastic cover and pinion cap
- One piece seamless steel spring tube
- Double heat treated steel, tempered springs
- Precision machined, heat treated steel piston
- Adjustable latching and sweep speed valves
- Adjustable backcheck valve - Standard
- Delayed action valve - Optional
- Staked valves - Standard
- Non-Handed
- Tri-Pack - Regular, Top Jamb, and Parallel Arms - Standard - 15% power adjustment in standard arm for regular and top jamb mount
-Hold Open Arm
- Extra Heavy Duty Hold Open Stop Arm
- Extra Heavy Duty Stop Arm
- Extra Heavy Duty Arm
- Extra Heavy Duty Hold Open Arm
- Extra Heavy Duty Cushion Stop Arm
- Extra Heavy Duty Hold Open Cushion Stop - Self-reaming, self-tapping wood and machine screws - Sex nuts and bolts
- 1-3/4" (44 mm) - Standard - 1-3/8'' - 2-1/4'' (36 mm - 57 mm) thick door - Optional
- Used on doors with a maximum weight of 250 lbs.
- Ideal for schools, hospitals, and other high-use environments - maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products use of anti-friction or ball bearing hinges with our door closer products. - Accessories may not be available in all finishes. Please contact Hager for availability and lead
- Type: Surface
- Mounting Location: Push or Pull Side
- Mounting Style: Tri Mount
- Closer Size: 1-6
- Finish: Aluminum
- Images may not represent actual product and finish
- Manufacturer: Hager
- SKU: 5300 MLT 16 ALM
- Security Lock UID: HAG1005300MLT16ALM
- Packing & Sold as: Each
- Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
|
