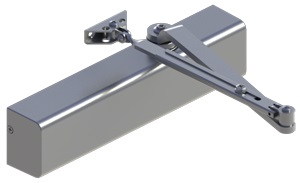

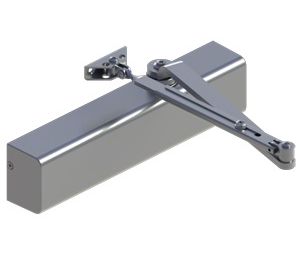

Hager 5200-PA-EHCS-1-4-DBZ

5200 Series

• Certification:

- BHMA Certified ANSI A156.4, adjustable sizes 1-6
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Lifetime Warranty

• Material:

- Aluminum Alloy
The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)

• Cover:

-Full plastic cover - Standard
- Slim line plastic cover - Optional
- Full size plated metal cover - Optiona l

• Springs:

- One piece seamless steel spring tube
- Double heat treated steel, tempered springs
- Precision machined, heat treated steel piston

• Valves:

- Adjustable latching and sweep speed valves
- Adjustable backcheck valve - Standard
- Delayed action valve - Optional
- Staked valves - Standard

• Handing:

- Non-Handed

• Arms & Brackets:

- Tri-Pack - Regular, Top Jamb, and Parallel Arms - Standard

- 15% power adjustment in standard arm for regular and top jamb mount

• Optional Arms:

-Hold Open Arm
- Extra Heavy Duty Hold Open Stop Arm
- Extra Heavy Duty Stop Arm
- Extra Heavy Duty Arm
- Extra Heavy Duty Hold Open Arm
- Extra Heavy Duty Cushion Stop Arm
- Extra Heavy Duty Hold Open Cushion Stop

• Optional Brackets:

- Regular Arm Mount - Narrow Top Rail

- Parallel Arm Mount - Narrow Top Rail

• Fasteners:

- Self-reaming, self-tapping wood and machine screws

- Sex nuts and bolts

• Door Thickness:

- 1-3/4" (44 mm) - Standard

- 1-3/8'' - 2-1/4'' (36 mm - 57 mm) thick door - Optional

- Used on doors with a maximum weight of 250 lbs.

- Ideal for schools, hospitals, and other high-use environments

- To maximize hinge life and assist in achieving ADA compliance, Hager recommends the

use of anti-friction or ball bearing hinges with our door closer products.

- Accessories may not be available in all finishes. Please contact Hager for availability

and lead time.

• Type: Surface
• Mounting Location: Push Side
• Mounting Style: Parallel Arm
• Closer Size: 1-4
• Finish: Dark Bronze
• Images may not represent actual product and finish
• Manufacturer: Hager
• SKU: 5200 PA EHCS 1-4 DBZ
• Security Lock UID: HAG1005200PAEHCS14DBZ
• Packing & Sold as: Each
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
