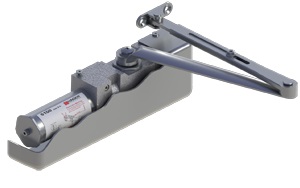

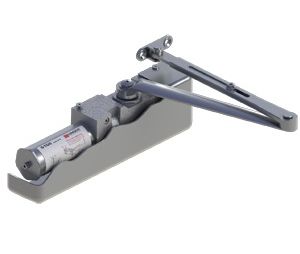

Hager 5100-PAR-26-ALM-FC

5100 Series

• Certification:

- BHMA Certified ANSI A156.4, adjustable sizes 1-6

- ADA compliant ANSI A117.1 Accessibility Code

- UL/cUL Listed for up to 3 hours

- UL10C Positive Pressure Rated

- UL10B Neutral Pressure Rated

- Lifetime Warranty

• Material:

- Cast Iron

- The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)

• Cover:

- Full plastic cover - Standard

- Plated metal cover - Optional

• Springs:

- One piece seamless steel spring tube

- Double heat treated steel, tempered springs

- Precision machined, heat treated steel piston

• Valves:

- Adjustable latching and sweep speed valves

- Adjustable backcheck valve - Standard

- Delayed action valve - Optional

- Staked valves - Standard

• Handing:

- Non-Handed

• Arms & Brackets:

- Tri-Pack - Regular, Top Jamb, and Parallel Arms - Standard

- 15% power adjustment in standard arm for regular and top jamb mount

• Optional Arms:

- Hold Open Arm

- Extra Heavy Duty Hold Open Stop Arm

- Extra Heavy Duty Stop Arm

- Extra Heavy Duty Arm

- Extra Heavy Duty Hold Open Arm

- Extra Heavy Duty Cushion Stop Arm

- Extra Heavy Duty Hold Open Cushion Stop Arm

• Optional Brackets:

- Regular Arm Mount - Narrow Top Rail

- Parallel Arm Mount - Narrow Top Rail

• Fasteners:

- Self-reaming, self-tapping wood and machine screws

- Sex nuts and bolts

• Door Thickness:

- 1-3/4" (44 mm) - Standard

- 1-3/8'' - 2-1/4'' (36 mm - 57 mm) thick door - Optional

- Used on doors with a maximum weight of 330 lbs.

- Ideal for schools, hospitals, and other high-use environments

- To maximize hinge life and assist in achieving ADA compliance, Hager recommends the

use of anti-friction or ball bearing hinges with our door closer products.

- Accessories may not be available in all finishes. Please contact Hager for availability and lead time.

• Type: Surface
• Mounting Location: Push Side
• Mounting Style: Parallel Arm
• Closer Size: 2-6
• Cover: Full
• Finish: Aluminum
• Images may not represent actual product and finish
• Manufacturer: Hager
• Security Lock UID: HAG1005100PAR26ALMFC
• Packing & Sold as: Each
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
