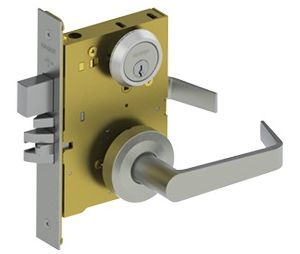

Hager 3853S-WTN-32D-SC1

3800 Series Sectional Grade 1 Fixed Cylinder Mortise Lock

• Self-adjusting case for beveled doors
• Stopworks are incorporated in thumbturn
• Breakable spindles to prevent lock from unlocking or being damaged
• Non-handed, stainless steel, deadlocking bar
• Field reversible
• Conventional cylinder, SFIC housing and LFIC housing available
• BHMA Certified Grade 1, Series 1000, Security with standard mortise cylinder
• Lock Case: 4-5/16" x 6" x 1" (110 mm x 152 mm x 25 mm)
• Rose: 2-7/16" (62 mm)
• Keys: Two brass keys per lock
• Cylinders:
  - Brass - keyed different - Schlage C keyway - standard
  - Drilled 6-Pin, Keyed 5-Pin - standard
  - Other keying options, including keyed 6-pin, available from factory
  - Zero bit cylinders will be 6 pin keyed - standard
  - Small Format Interchangeable Core cylinder option available
  - SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
  - Large Format Interchangeable Core cylinder option available
  - LFIC zero bitted or combinated, brass 6-pin sold separately - Schlage C keyway only
  - Schlage"L" cam is used standard on Hager mortise locks
• Backset: 2-3/4" (70 mm) Only
• Latchbolt: 3/4'' (19 mm) Throw with anti-friction tongue, all stainless steel
• Deadbolt: 1" (25 mm) Throw, Stainless Steel
• Strike: 3985 1-1/4" x 4-7/8" (32 mm x 124 mm), 1-3/16" (30 mm) Lip - Standard
• Fasteners: Thru-bolted trim concealed under rose
• Applications: Extra Heavy-Duty Commercial - Industrial - Institution
• Function: Entrance
• Lever/Knob Design: Withnell Lever Style
• Rose/Escutcheon Design: Rose
• Cylinder Type: Conventional Cylinder
• Basket: 2-3/4"
• Finish Description: Satin Chrome
• Images may not represent actual product and finish
• Manufacturer: Hager
• Security Lock UID: HAG1003853SWTN32DSC1
• Packing & Sold as: Each
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
