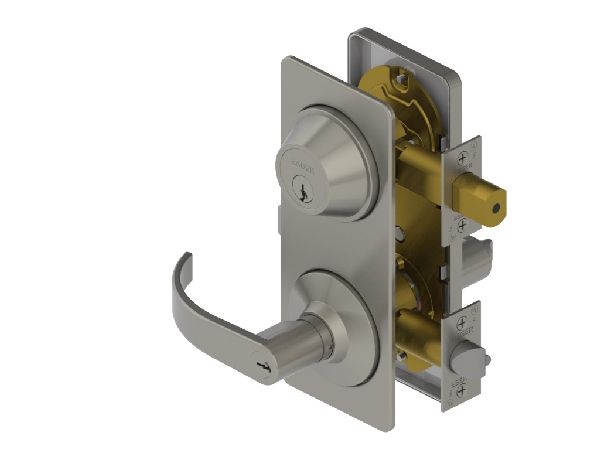

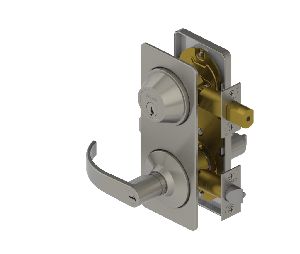

Hager 3753-WTN-US26D-SC

3700 Lever:

• Certification:
  • BHMA Certified ANSI A156.12 Grade 2
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours for"A" label single doors
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
• Exposed Trim:
  • Wrought brass or bronze, cast zinc lever
• Lock Chassis:
  • Heavy gauge steel, zinc dichromated
  • Thru-bolt mounting levers
• Rose Diameter:
  • 2-1/2" (63 mm)
• Keys:
  • Two operating keys supplied per lock
• Cylinders/Cores:
  • Brass 6-pin - Keyed Different - Schlage C Keyway - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other keying options, including keyed 6 pin, available from factory
  • Zero bit cylinders will be 6 pin keyed - standard
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
• Door Thickness:
  • 1-3/8" - 1-3/4" (35 mm - 45 mm) - Standard,
  • 2" (52 mm) doors - Optional
• Backset:
  • 2-3/4" (70 mm) - standard
  • 2-3/8" (60 mm) - optional
• Latchbolt:
  • 1/2" (13 mm) Throw - Stainless Steel
  • 1-1/8" x 2-1/4" (29 mm - 57 mm) Faceplate for 2-3/4" (70 mm) backset
  • 1" x 2-1/4" (25 mm x 57 mm) Faceplate for 2-3/8" (60 mm) backset
  • Deadlocking latchbolt prevents manipulation when door is closed
  • Square corner faceplate standard, round corner available
• Strikes:
  • 3933 Square Corner T-Strike with plastic dust box, 1-1/8" x 2-3/4" (29 mm x 70 mm) - Standard
  • 3930 Square Corner Strike Plate with dust box, 1-1/8" x 2-3/4" (29 mm x 70 mm) - Standard
• Finishes:
  • US3, US4, US10, US10B, US26, US26D
• Function: 53 Double locking entry
• Options:
  • Split finish
  • Split lever design
• Standard Door Prep:
  • 4" (102 mm) center of deadbolt to center of lock chassis
  • 2-1/8" (54 mm) diameter (cross bore)
  • Latch hole: 1" (25 mm) diameter (edge bore)
• Lever Options:
  • Archer, August, Withnell levers
• Applications:
  • Heavy Duty Residential
  • Medium Duty Commercial
  • Lifetime warranty
  • Non-handed
  • Conventional cylinder or Small Format Interchangeable Core housings available
• Applications: Extra Heavy-Duty Commercial - Industrial - Institution
• Function: Entrance
• Lever/Knob Design: Withnell Lever Style
• Rose/Escutcheon Design: Rose
• Cylinder Type: Conventional Cylinder
• Keyway: C
• Basket: 2-3/4"
• Finish Description: Satin Chrome
• Images may not represent actual product and finish
• Manufacturer: Hager
• Security Lock UID: HAG1003753WTNUS26DSC
• Packing & Sold as: Each
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
