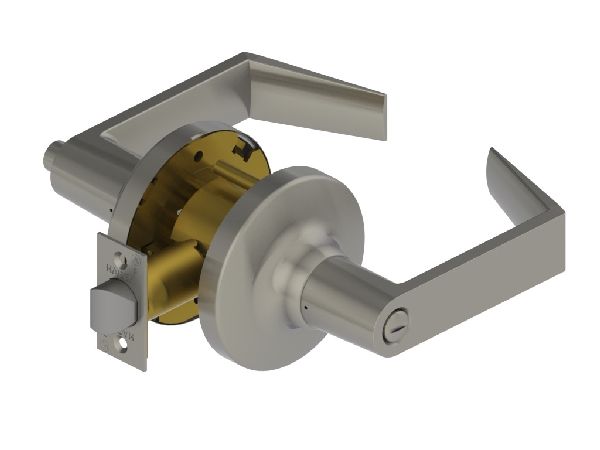

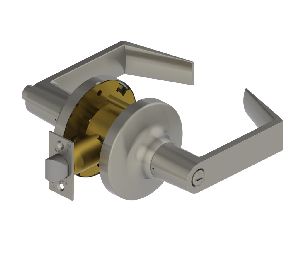

Hager 3453-AUG-US3-SFIC-ASA

3400 Lever:

• Certification:
  • BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ADA Compliant ANSI A117.1 Accessibility Code
  • ANSI A250.13 Severe Windstorm Resistant Component
  • UL/cUL Listed for all functions up to 3 hours for ''A'' label single doors (for double door application, UL/cUL Listed when used with 3/4" latchbolt)
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • Lifetime warranty
• Exposed Trim:
  • Lever: Cast zinc
  • Rose: Wrought brass or Stainless Steel
  • Intruder Classroom function has locking indicator arrow stamped on the interior rose
• Lock Chassis:
  • Heavy gauge steel, zinc dichromated for corrosion resistance
  • Free wheeling levers
  • Thru-bolt mounting levers
• Rose Diameter:
  • 3-17/32" (90 mm) levers; 3" (76 mm) knobs
• Keys:
  • Two operating keys supplied per lock
• Cylinders/Cores:
  • Brass 6-pin, keyed different - C Keyway
  • Other keying options, including keyed 6-pin, available from factory
  • Small Format Interchangeable Core option available
  • SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
  • Large Format Interchangeable Core option available
  • LFIC zero bitted or combinated, brass 6-pin sold separately
• Door Thickness:
  • Levers: 1-3/8" - 2" (35 mm - 51 mm)
• Backset:
  • 2-3/4" (70 mm) - standard
  • 2-3/8" (60 mm) - optional
  • 3-3/4" (94 mm) - optional
  • 5" (128 mm) - optional
• Latchbolt: - 1/2" (13 mm) throw, Stainless Steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
  • Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
  • Square corner faceplates standard, round corner available
  • 3/4" (19 mm) latch available
• Strikes:
  • 3935 ASA 1-1/4" x 4-7/8" (32 mm x 124 mm) strike - Standard
• Finishes:
  • US3, US4, US10, US10B, US26, US26D
• Functions: - 10 - Passage, 17 - Dummy, 40 - Privacy, 50 - Office, 53 - Entry, 70 - Classroom, 73 - Corridor, 80 - Storeroom, 95 - Classroom Security
• Options:
  • Lead lined
  • Tactile knurling
  • Split finish
  • Additional latchbolts and strikes available
• Standard Door Prep:
  • 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)
• Lever Options:
  • Archer, August, Withnell levers
• Installation:
  • Comes pre-set for 1-3/4 thick doors for quicker installation
  • Threaded mounting bracket adjusts to proper door thickness in seconds
  • Only two screws needed to fully secure inside and outside assemblies to the door
  • Screws will ratchet tight letting installer know the lockset is properly tightened
  • Roses and levers snap on in seconds
• Applications: Extra Heavy-Duty Commercial - Industrial - Institution
• Function: Entrance
• Lever/Knob Design: August Lever Style
• Rose/Escutcheon Design: Rose
• Cylinder Type: SFIC Prep With Core
• Basket: 2-3/4"
• Finish Description: Bright Brass
• Images may not represent actual product and finish
• Manufacturer: Hager
• Security Lock UID: HAG1003453AUGUS3SFICASA
• Packing & Sold as: Each
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
