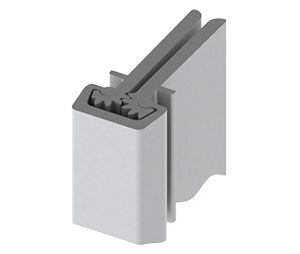

Hager 1200-600XHD-119-DBA

Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.

• Hinge Type: Continuous Hinge, Concealed Leaf
• Bearing Type: Continuous Gear
• Height: 119"
• Weight: Extra Heavy Duty
• Grade: Grade 1
• Finish: Dark Bronze Anodized Aluminum
• Base Material: Aluminum
• Application: No Special Preps
• Limited Warranty: Lifetime
• Clearance: 15/32" (12 mm) hinge side plus standard lockside clearance
• Application:
  - Lead lined model for hospital x-ray room doors with double row of screws to straddle lead (Specify"LL")
  - Frame and door leaf alignment ribs for proper hinge and door location
• Fasteners: 1/4"-20 Dril-Kwik® screws or optional 1/-14 x 11/2" wood screws
• Door Reinforcement: None required to 200 lbs, use 16 gauge channel at higher weight
• Door: 1-3/4" to 2-1/4" thick
• Frame Reinforcement: Frame reinforcement recommended for doors in excess of 200 lbs and 3 feet in width
• Images may not represent actual product and finish
• Manufacturer: Hager
• Security Lock UID: HAG1001200600XHD119DBA
• Packing & Sold as: Each
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
