Hes 1500C 606

The 1500C has a heavy duty, low profile design for latchbolt applications.

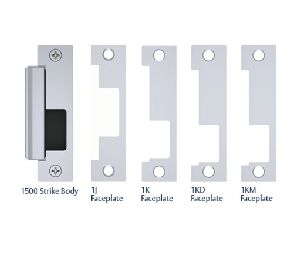

Each Complete Pac conveniently pairs the reliabilty of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 1500C includes a 1500 strike body and 1LB faceplate kit for latchbolts.

• Electric Strike Complete Pac
• Includes 1J, 1K, 1KD, 1KM Options
• Function Field: Selectable (Safe/Secure)
• Operating Voltage: 12VDC/24VDC
• Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
• Use With: Cylindrical and Mortise Latchbolts
• Faceplate Shape: Flat Face, Square Corners
• Frame Depth: 1-3/8"
• Faceplate Size: 4-7/8" X 1-1/4"
• Fire Rated: Yes
• Frame Application: Metal or Wood
• Base Material: Brass
• Finish: Satin Brass
• Use With: Cylindrical and Mortise Latchbolts
• Fire Rated: 3 Hours


  Additional Series Information:

• Tamper-resistant
• Static strength: 1,500 lbs
• Dynamic strength: 70 ft-lbs
• Endurance: 1,000,000 cycles
• Non-handed
• Fully finished faceplate, keeper, case and trim
• Field adjustable integrated shim
• ElectroLynx® connectors
• Interchangeable faceplates and accessories
• Field replaceable springs and actuator
• Item Image may differ from product selected
• Packing & Sold as: Each.
• Note:Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
