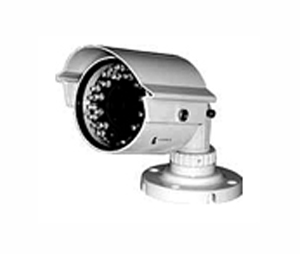

Golden State Instrument GSI-GS636IRCW

Model: GS636IRCW

Features:

• Applications for the Camera Include Operating at Night and a Transmission Range of Approximately to 60 to 80 feet Indoor
• Use high-speed IR LED (30 pcs)
• Transmission Angle: 60°
• Very Low Smear, 6dB Better than Average
• High Quality Picture, Aesthetic and Easy to Install
• Digital AGC Control This AGC Function Provides a Clear Image in Low Light Conditions
• Auto High Speed White Balance Zero Color Rolling
• Auto Exposure (AE) Camera Can Adjust to Most Light Source Conditions
• Gamma Correction Adding Gamma Correction Allows a Good Picture in a Very Bright or Very Dark Environment
• Built-in a New 20 Bit Digital Signal Processing Chip

Specifications:

• TV System NTSC / PAL
• Image Sensor: 1/3" Sony Super HAD CCD Image Sensor
• CCD Total Pixels 542 (H) x 496(V) / 542(H) x 586(V)
• CCD Effective Pixels 512 (H) x 492(V) / 512(H) x 582(V)
• Scanning System 525 Lines, 60 Fields/sec. / 625 Lines, 50 Fields/sec.
• SYNC System Internal Minimum Illumination 0 Lux (LED ON) 0.5Lux (LED OFF)
• Lens 3.7 mm F2.0
• Resolution 480 TV Lines (Max.)
• Signal to Noise Ratio Better than 52 dB (AGC OFF) Typical 60dB
• White Balance Auto High Speed White Balance (1 FRAME)
• White Balance Range: AWC, ATW(3200-10000 °K) / FIX (3200 °K)
• Auto Iris A.E.S.
• Electronic Shutter: 1/60-1/120,000 sec 1/50-1/120,000 sec
• Video Output 1.0Vp-p Composite Video @ 75 ohm
• Gamma Correction
• Operating Temperature: 20° to 50°
• Operating Humidity: Within 85 % RH
• Power Supply: 12VDC
• Power Consumption: 100 mA (LED OFF) 350 mA (LED ON)

Description:

The Color Infrared Illuminator Bullet Camera incorporates an advanced, light sensor and a high performance DSP (Digital Signal Processor) in order to provide 60dB S/N, and Zero Color Rolling. The units are suitable for a wide range of applications and for installation in all types of locations.
