Folger Adam 742-75-24D-630

copy to clipboard

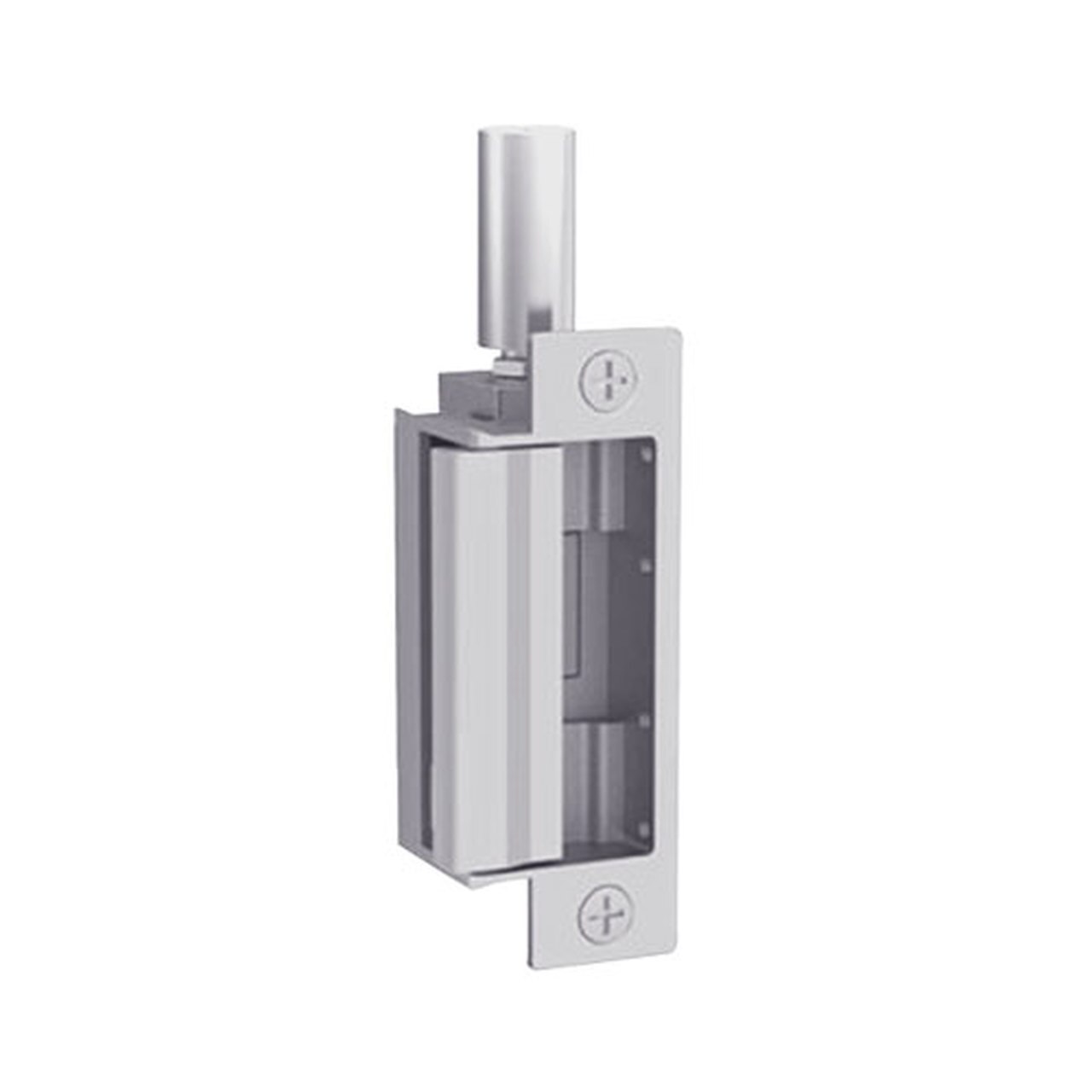

Folger Adam 742-75-24D-630 Fail Secure, Complete 24VDC Electric Strike, 3/4" Keeper, Metal Frame, Satin Stainless Steel

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.

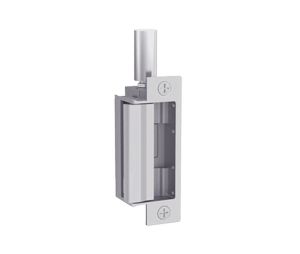

Folger Adam 742-75-24D-630 Fail Secure, Complete 24VDC Electric Strike, 3/4" Keeper, Metal Frame, Satin Stainless Steel
More from Folger Adam
Price: $481.28 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

1-844-809-3667

Sales
Technical Support
Product Description:
Folger Adam 742-75-24D-630 Fail Secure, Complete 24VDC Electric Strike, 3/4" Keeper, Metal Frame, Satin Stainless Steel

The 742-75 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications. The 742-75 series comes standard with a variety of brackets to accommodate all major mortise and cylindrical locks with up to a 3/4" throw latchbolts.* This is the one electric strike to choose when you are uncertain of which lockset you may encounter.

  • Complete Electric Strike
  • Function: Electrically Unlocked (Fail Secure)
  • Operating Voltage: 24VDC
  • Amp Draw: .15AMPS
  • Keeper Size: 3/4"
  • Configuration: Universal
  • Use With: Cylindrical Locks, Mortise Exit and Latch Locks
  • Faceplate Size: 4-7/8" X 1-1/4"
  • Fire Rated: 3 Hours
  • Holding Force: 1500
  • Frame Application: Metal
  • Application: 3/4" Latchbolt
  • Base Material: Stainless Steel
  • Finish: Satin Stainless Steel

Series Information:

  • Tamper resistant, heavy-duty construction
  • Constructed entirely of stainless steel for strength and corrosion resistance
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Horizontally adjustable keeper to allow for door and frame misalignment
  • Deadlatch tabs included
  • Plug-in connector
  • Full keeper shim
  • Non-handed

Certification and Listings:

  • UL 10C fire-rated, 3 hour single door (fail secure only)
  • UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
  • CAN4-S104 (ULC-S104) fire door conformant
  • UL1034, burglary-resistant listed
  • UL 294 listed
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • Packing & Sold as: Each.
  • Note:Unit of measure is Each. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Questions and Answers
Q: Is this device made for left or right hand install?
A: This electric strike in non-handed.
