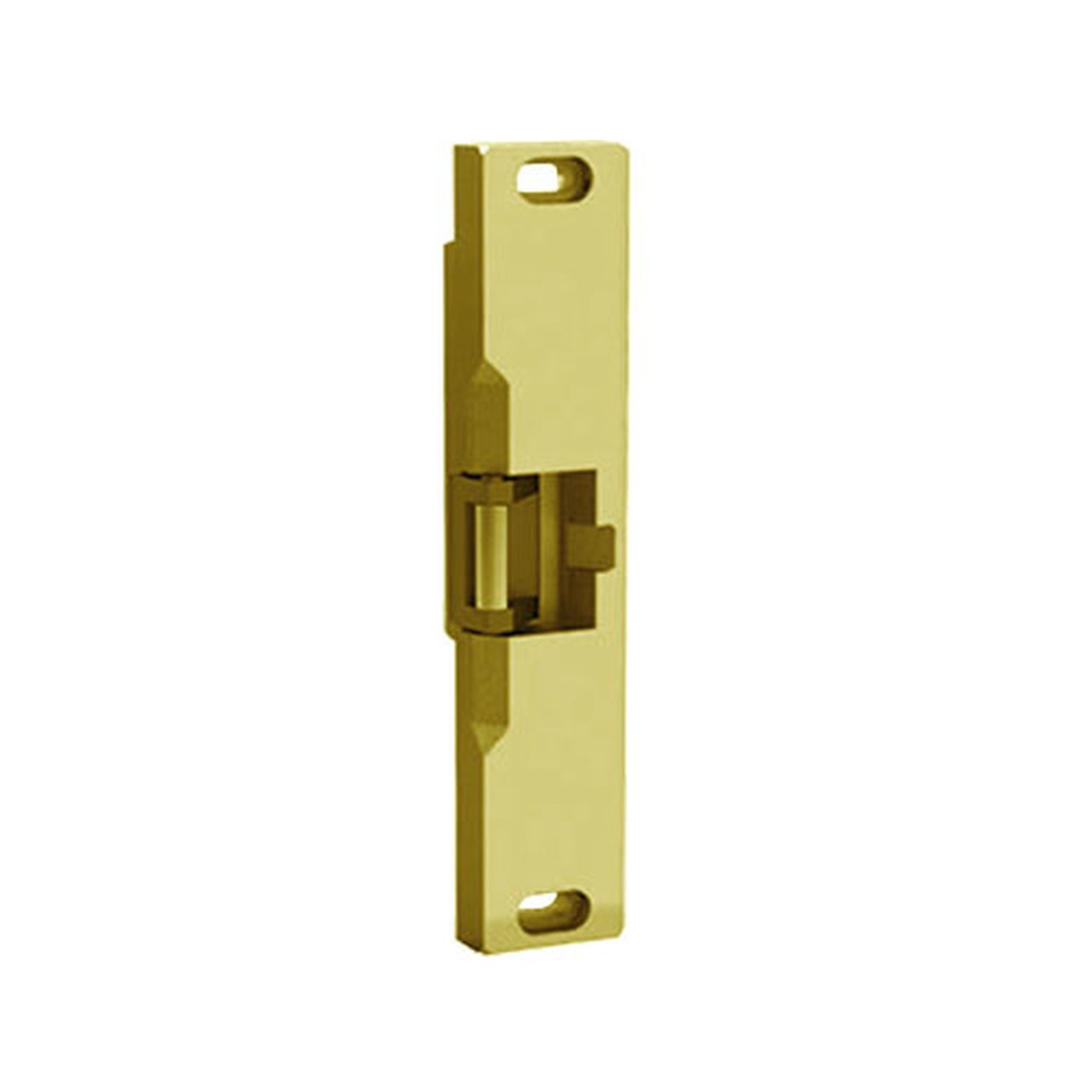

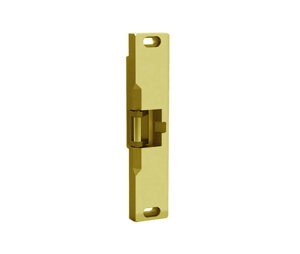

Folger Adam 310-4S-12D-606

The 310-4 is a 3 hour fire-rated, industrial electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes. The 310-4 has a unique 3/4" face plate with an integraded 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.

• Complete Electric Strike
• Function: Electrically Unlocked (Fail Secure)
• Operating Voltage: 12VDC
• Amp Draw: .51 Amps
• Keeper Size: SK
• Configuration: Centered
• Use With: Rim Exit Devices with Squarebolt
• Faceplate Size: 9" X 1-1/2"
• Fire Rated: 3 Hours
• Holding Force: 1500
• Frame Application: Metal or Wood
• Application: Squarebolt Rim Panic Device
• Base Material: Brass
• Finish: Satin Brass

Series Information:

• Integrated shim for quick customization of faceplate thickness (1/2" to 3/4")
• Tamper resistant, heavy-duty construction
• Constructed entirely of stainless steel for strength and corrosion resistance
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance rating 500,000 cycles
• Integrated ramps for better deadlatch handling
• Set screws for horizontal lockdown
• In-frame horizontal adjustability
• Wider faceplate (1-3/4") for greater versatility
• Non-handed
• Plug-in connector

Certification and Listings:

• UL1034, burglary-resistant listed
• UL 294 listed
• ANSI/BHMA A156.31, Grade 1
• NFPA-252 fire door conformant
• ASTM-E152 fire door conformant
• Packing & Sold as: Each.
• Note:Unit of measure is Each. When you buy a quantity of 1 you will get one piece. Price is for one piece.
