Fibre Options FIO-S734DVRRST1
Fibre Options FIO-S734DVRRST1

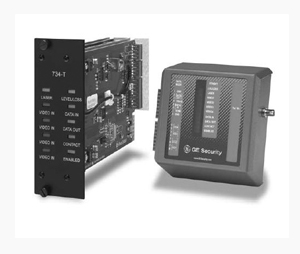

Fibre Options FIO-S734DVRRST1 4-Channel Video and 2-Way Multiprotocol Data
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
2,815.73 USD
Comments
(Optional)
In Stock Ready for Shipment
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
[email protected]
Technical Support
[email protected]
Product Description:
Fibre Options FIO-S734DVRRST1 4-Channel Video and 2-Way Multiprotocol Data
Model: S734DVRRST1
Specifications:
Video Bandwidth: 6.2 MHz
Video Differential Gain: <2%
Video Differential Phase: <0.7 degree
Video Input/Output Signal: 1.0 V pk - pk composite
Gain Control: Optical Automatic Gain Control (OAGC)
Dimensions: 2 slots (2.0")
MODE: Multimode
Video Resolution: 500 TV lines
Regulatory Compliance: FCC
Power Factor: 5 %
Video Format: NTSC and PAL
Receiver Sensitivity: -22 dBm
Video Channels: 4
Wavelength: 850 nm and 1300 nm (depending on model)
DC Voltage: 13.50 V
Video Input/Output Impedance: 75 Ohms
Optical Budget: 13 dB
Data formats: RS-232 (3-wire/5-wire), TTL, RS-422, RS-485 (2-wire/4-wire), Manchester, Biphase, SensorNet
Data Bit Error Rate: <1.0E-9
Product Weight: 0.54 kg (1.20 lbs)
Emitter: Laser
Active Power: 9 W
Launch power: -9 dBm
Data Channels: 1 duplex
Signal to Noise Ratio: 55 dB
Operating Distance (Multimode): 17060.37 ft (520000 cm)
Operating Temperature: -40°C - 70°C (-40°F - 167°F)
Data Baud Rate: 250 kbps to 512 kbps (depending on data format)
Data Relay/Contact Closure: 4 simplex channel (TX to RX)
Data Relay/Contact Rating: 0.5 A at 30 VDC
