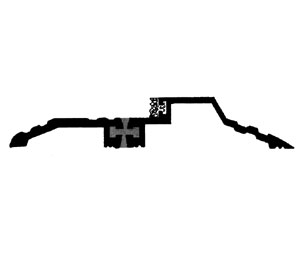

Dorbin 505AST 36" Mill Finish Aluminum Thermal Barrier Latchtrack Threshold with Santoprene Thermal insert

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Dorbin 505AST 36" Mill Finish Aluminum Thermal Barrier Latchtrack Threshold with Santoprene Thermal insert
More from Dorbin
Price: $121.78 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 3 business days with $165.00 minimum purchase of Dorbin products or 10 business days for smaller orders.

Dorbin has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

Additional Declarations -

Dorbin has put into place extreme price increases and their material has become exceptionally expense and strongly urge you to consider Reese or Pemko as alternates.

1-844-809-3667

Sales
Technical Support
Product Description:

dorbin logoDorbin 505AST 36" Mill Finish Aluminum Thermal Barrier Latchtrack Threshold with Santoprene Thermal insert

  • Thermal Barrier Latchtrack Threshold
  • Insert: Santoprene Thermal
  • Length: 36"
  • Width: 5"
  • Height: 7/8"
  • Material: Aluminum
  • Finish: Mill Finish
  • Fluted Top( bump up top which features a santoprene strip)
  • This threshold features a vinyl divider separating the interior portion of the threshold from the exterior portionThis greatly retards the transmission of cold from the extior to the interior of the doorway
  • Supplied drilled with countersunk holes
  • Packaged with #10 x 1 1/2" flat head screws (typically 1-screw per foot of threshold)
  • Available undrilled, please specify in the Comments field when ordering.
  • Application:
    • Commercial Doors
    • Interior and Exterior Weatherstripping Applications
  • Extra's:
    • Notching charges: This threshold can be ordered with an "L" notch. Please add $3.00 per piece and an extra day lead time.
    • Finishing charges: This threshold can be ordered in Satin or Polished finish. Please add 50% to cost and an extra day lead time. This threshold can be ordered in a Pewter finish. Please add $6.00 per foot and an extra day lead time.
    • Special Fasteners: Plastic Plugs #10 x 1", Lead Expansion Shields 3/16" x 1", Machine screws & L.A. (AJ's) 10-24.
    • For any of these Special Extras, please contact or sales department directly.

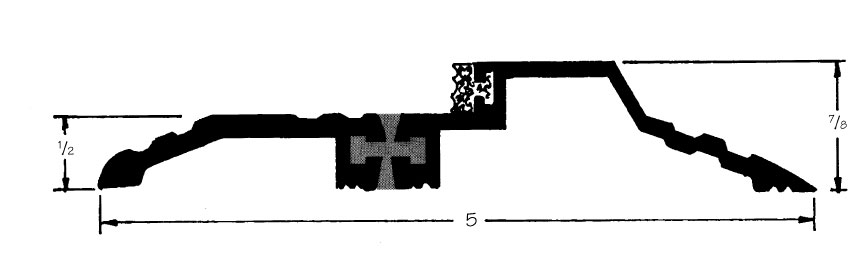

Dimensions
