Dorbin 167B 36"

copy to clipboard

Dorbin 167B 36" Mill Brass Interlocking Threshold

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Dorbin 167B 36" Mill Brass Interlocking Threshold
Main ImageVideo Review Dorbin 167B Mill Brass Interlocking Threshold
More from Dorbin
Price: $692.25 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 3 business days.
Additional Declarations -

Dorbin has put into place extreme price increases and their material has become exceptionally expense and strongly urge you to consider Reese or Pemko as alternates.

1-844-809-3667

Sales
Technical Support
Product Description:

dorbin logoDorbin 167B 36" Mill Brass Interlocking Threshold

  • Interlocking Threshold
  • Length: 36"
  • Width: 4 1/4"
  • Height: 7/8"
  • Material: Brass
  • Finish: Mill
  • It is shiped with the hook strip for nailing to the bottom of the door
  • Supplied drilled with countersunk holes
  • Packaged with #10 x 1 1/2" flat head screws (typically 1 - screw per foot of thresholdAvailable undrilled - please contact our sale department
  • Application:
    • Commercial Doors
    • Interior and Exterior Weatherstripping Applications
  • Extra's:
    • Notching charges: This threshold can be ordered with an "L" notch. Please add $3.00 per piece and an extra day lead time.
    • Special Fasteners: #6 x 1/2" Pan Head Phillips Self Drilling Zinc Plated screws.
    • For any of these Special Extras, please contact our sales department directly.

Dimensions
Dorbin
Questions and Answers
Q: Hi I am going to buy the Dorbin 167B threshold in Mill finish 36” and want to know if you also have the “j-strip” or strip that attaches to the bottom of the door? Thanks Brad
A: Bradley the J or hook strip for this unit can be reviewed here:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: I have one of these installed in my house and want to add another. What does it mean that an "L" notch can be ordered?
A: An "L" notch means the factory can do custom cutting, trimming or notching at the ends of the threshold to suit your specific requirements. This service is quoted upon application after receipt of a sketch showing what cutting or notching you require done to the threshold.

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: What is the overall length of a 36" threshold? The one I replace will need to extend on either side to the door jamb, approximately 36 1/2". Thanks.
A: The overall length of a 36” threshold is generally 36” -0” / + ¼” which means that it will never be shorter than 36 but can be slightly longer than 36 generally no more than a ¼” or in some cases an ?” or in some cases a ½”

the important thing to be sure of is that if you have a need for a very specific length be sure to order the next longest piece or pieces and simply indicate in the comment field the net length that you want us to ship the material out at.

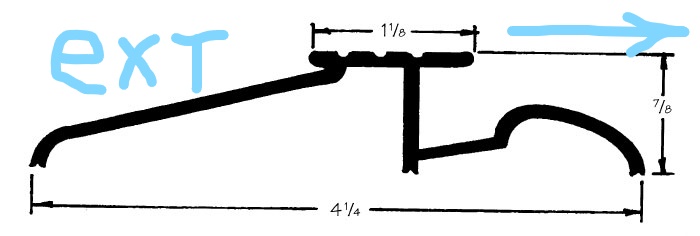

Q: OK - this is a dumb question - but in looking at the diagram, which side of the threshold faces the interior v. exterior?
A: Certainly not a dumb question whatsoever - and I appreciate the question. Please click the image as seen here:

View Image

which indicates the exterior side and the arrow is the direction of travel of the door. Please feel free to send any follow-up question youMay have.

Q: What is the difference between mill brass and mill bronze in interlocking thresholds?
A: Not sure except that people use the terms brass and bronze interchangeably.. The proper term is "Architectural Bronze" which is an alloy of 4 primary base metals Alloy CDA 385 (Copper Alloy No. C38500). Mill is a reference to the finish. Mill means there has been nothing done to the base material regarding finish.
